Viega 28765 MegaPressG 6612XL Adapter 4 in x 4 in Press x FNPT

Product Description

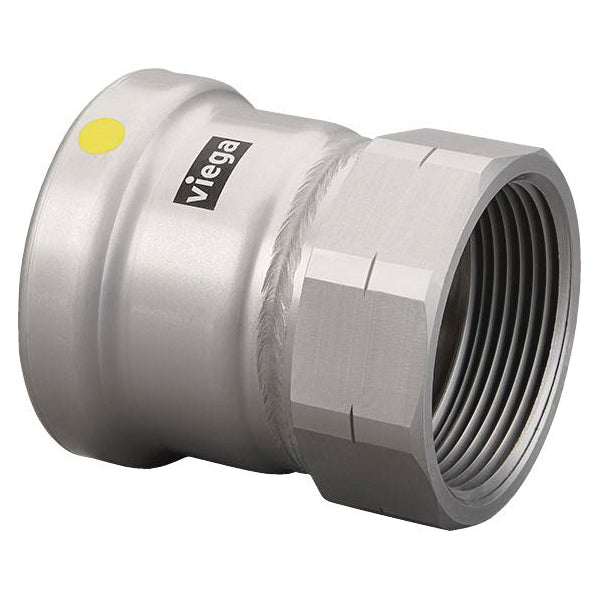

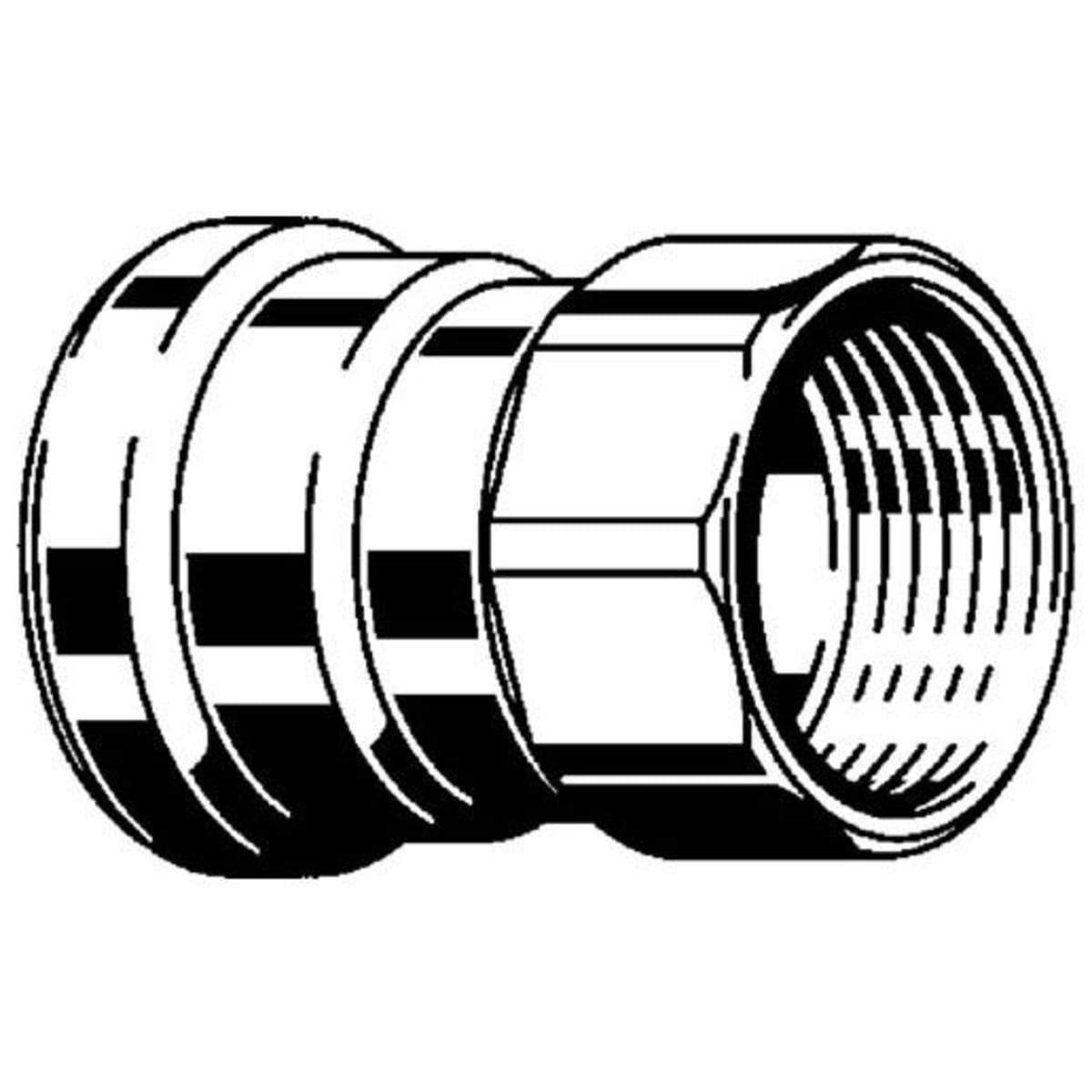

The Viega MegaPressG 28765 model is a four inch adapter designed for gas pipe applications. This press fitting provides a Press x FNPT end style connection and is made of durable carbon steel with a zinc-nickel coating.

• Suitable for ASTM SCH 5 to 40 carbon steel pipe.
• Corrosion-resistant coating for extended service life.
• Viega Smart Connect technology helps identify unpressed connections.

Product Highlights

The MegaPressG system offers easy and fast installation with flameless connections in as little as sixteen seconds.

Product Information

Standard Information

• Brand: Viega
• Model: 6612XL

Technical Specifications

• Material: Carbon Steel
• Finish: Nickel Plated/Zinc Coated
• Nominal Size: 4 in
• End Style: Press x FNPT
• Pressure Rating: 125 psi for fuel gas / 200 psi for other applications
• Temperature Rating: -40 to 180 degrees F
• Dimensions: 5.42 in length
• Application: Natural gas, propane, lubricants, industrial gases, compressed air
