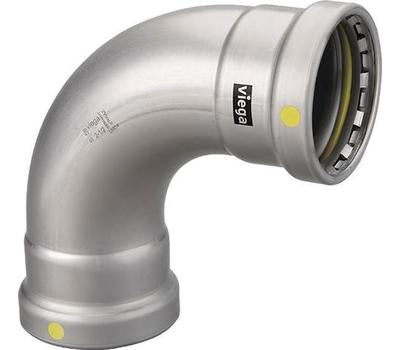

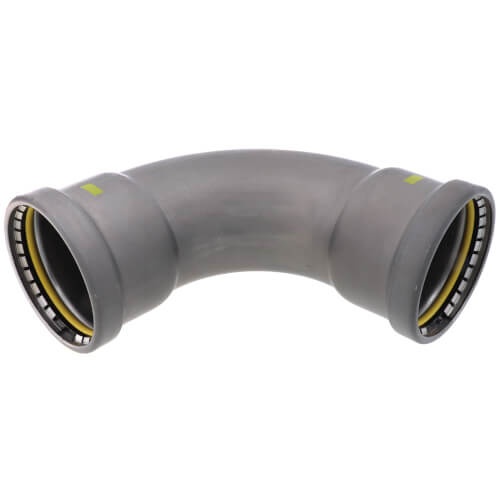

Viega 28605 MegaPressG 3 inch 90 Degree Elbow Press Connection Zinc-Nickel Coated

Product Description

The Viega 28605 MegaPressG 3 inch 90 Degree Elbow provides a robust connection solution for gas and fuel oil piping systems. Constructed from carbon steel with a zinc-nickel coating, it ensures durability and corrosion resistance.

• Quick and easy press-fit connections save time on installation.
• Compatible with schedule 5 to schedule 40 carbon steel pipes.
• Equipped with HNBR sealing elements for enhanced leakage protection.

Product Highlights

This elbow fitting is designed for quick assembly without the need for flames, utilizing a press connection that seals in seconds. This feature is crucial in environments where safety and efficiency are priorities.

Product Information

Standard Information

• Material: Zinc-Nickel Coated Carbon Steel
• Application: Gas, Fuel Oil

Technical Specifications

• Size: 3 inch x 3 inch
• Connection Type: Press x Press
• Pressure Rating: Up to 200 psi
• Temperature Range: -40°F to 250°F
