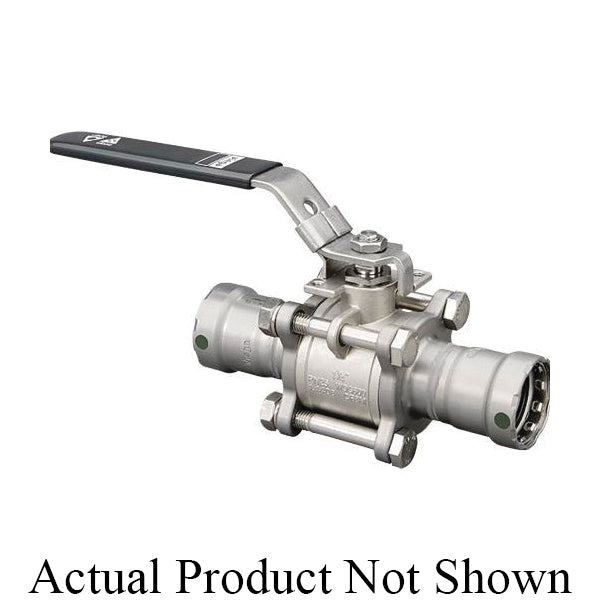

Viega 28504 MegaPress 28504 Model 4875.8 3-Piece Ball Valve, 1-1/2 in Nominal, Press End Style

Product Description

The Viega MegaPress 28504 is a 3-piece ball valve designed for use in plumbing applications. It features a nominal size of one and one-half inches with a press end style connection. Constructed from 316 stainless steel, this valve ensures durability and resistance against corrosion. The ball and body materials are both 316 stainless steel, enhancing reliability in various media applications.

• Approved for a wide range of applications with carbon steel pipe
• Corrosion resistant zinc nickel coating
• Designed for underground applications per local codes

Product Highlights

This valve is equipped with Viega's Smart Connect technology which allows for easy identification of unpressed connections. It utilizes EPDM sealing for reliability and features a locking handle for secure operation. The maximum pressure rating is two hundred fifty psi, with an operating temperature range from zero to two hundred fifty degrees Fahrenheit.

Product Information

Standard Information

• Brand: Viega
• MPN: 28504

Technical Specifications

• Actuator Type: Locking Handle
• Ball Material: 316 Stainless Steel
• Body Material: 316 Stainless Steel
• End Style: Press
• Finish: Zinc Nickel Coated
• Media: Water, Diesel Fuel, Lube Oil, Ammonia, Low Pressure Steam, Fluids, Gases
• Nominal Size: 1-1/2 in
• Port Type: Full
• Pressure Rating: 250 psi
• Series: Model 4875.8
• Softgoods Material: EPDM/PTFE
• Temperature Rating: 0 to 250 deg F
• Top to Inlet Center: 3.89 in
• Trim Material: 316 Stainless Steel Stem
• Type: 3-Piece
