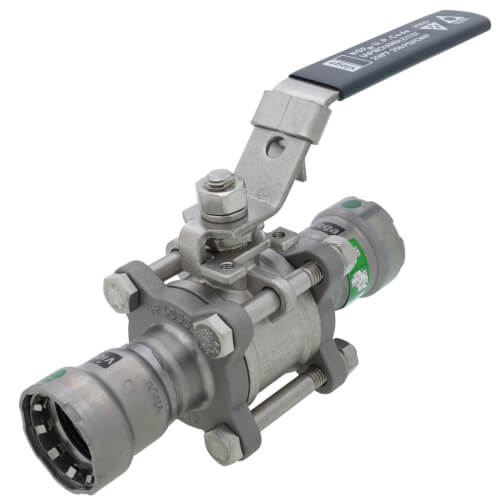

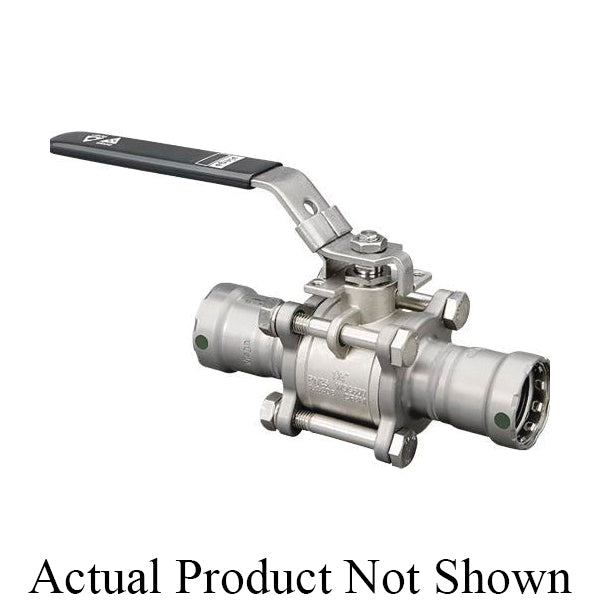

Viega 28501 MegaPress 3-Piece Ball Valve 3/4 in Replacement

Product Description

The Viega MegaPress 28501 is a three-piece ball valve designed for fluid control in various applications. It features a nominal size of three-quarters of an inch and integrates 316 stainless steel construction for durability. This ball valve utilizes a press end style for efficient installation and reliability.

• 316 stainless steel body for corrosion resistance
• EPDM sealing element and PTFE stem seals
• Rated for up to 250 psi pressure

Product Highlights

This valve is ideal for water, diesel fuel, ammonia, and low-pressure steam applications. It is suitable for use with ASTM schedule five to schedule forty carbon steel pipe.

Product Information

Standard Information

• Brand: Viega
• MPN: 28501

Technical Specifications

• Type: 3-Piece
• Media: Water/Diesel Fuel/Lube Oil/Ammonia/Low Pressure Steam/Fluids/Gases
• Nominal Size: 3/4 in
• Pressure Rating: 250 psi
• Temperature Rating: 0 to 250 deg F
• Finish: Zinc Nickel Coated
• Softgoods Material: EPDM/PTFE
• Ball Material: 316 Stainless Steel
• Body Material: 316 Stainless Steel
• Trim Material: 316 Stainless Steel Stem
• Actuator Type: Locking Handle
• End Style: Press
• Port Type: Full
