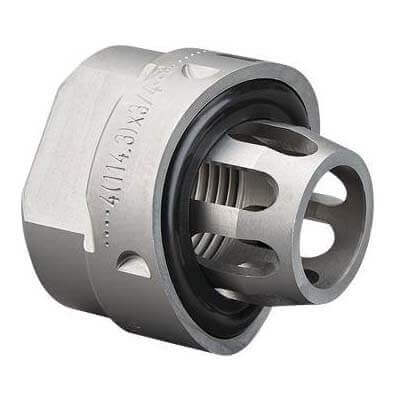

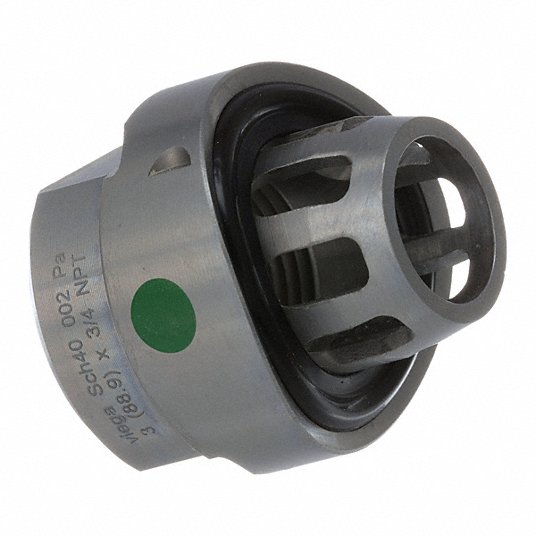

Viega 26905 Megapress Branch Connect F/S40 EPDM 3X3/4 inches

Product Description

The VIEGA 26905 Megapress Branch Connect is designed for use with schedule 40 carbon steel pipe. This branch connector features press connection and female pipe thread, with EPDM sealing elements. Suitable for plumbing in industrial wastewater and other non-potable water applications. The fitting creates a 3/4 in NPT threaded connection in accordance with ASME B1.20.1.

• For use with Sch.40 carbon steel pipe only
• Press Connection, Female Pipe Thread
• Carbon Steel construction with EPDM sealing elements

Product Highlights

The Viega Megapress Branch Connector requires no welding and poses no fire hazard, which is particularly important in restoration or retrofit work.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 26905
• Country of Origin: Germany

Technical Specifications

• Manufacturer: Viega
• Brand: Viega
• MPN: 26905
• Product Type: HOSE_PIPE_FITTING
• Product Group: BISS
• Size [Features]: 3/4"
• Material [Features]: Carbon Steel
• Connection Type [Features]: Press x FNPT
• Diameter (Inches) [Features]: 3"
• Item: Branch Connector
• Application: Non-Potable Water
• Fitting Shape: Branch Connector for Schedule 40 Pipe
• Finish/Coating: Zinc Nickel-Plated
• Connection Type: FNPT
• O-Ring Material: EPDM
• Fitting Material: Carbon Steel
• Fitting Pipe Size: 3/4 in, 3 in
• End Connection Type: Threaded
• Fitting Body Material: Zinc Nickel-Plated Carbon Steel
• Fitting Side A Pipe Size: 3 in
• Fitting Side B Pipe Size: 3/4 in
• Fitting Side B Connection Type: FNPT
• Includes Pre-Applied Thread Sealant: Yes
• Country of Origin (subject to change): Germany
• Size1: 3
• Size2: 3/4
• Length: 1.65 in
• Domestic/Import: Import
• End Style: Press x FNPT
• Finish: Nickel Plated/Zinc Plated
• Fitting/Connector Type: Branch Connector
• Material: Carbon Steel
• Nominal Size: 3 x 3/4 In
• Pressure Rating: 200 psi
• Schedule Rating: SCH 40/STD
• Temperature Rating: 250 deg F
• Fitting Side A Connection Type: Press-fit
• Fitting Size: 3 in Pipe x 3/4 in Pipe
