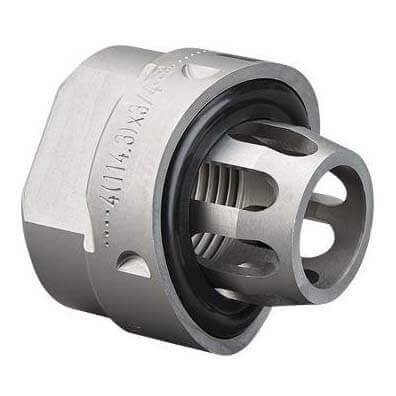

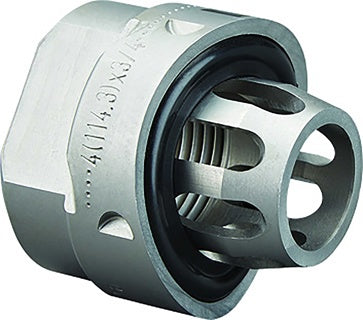

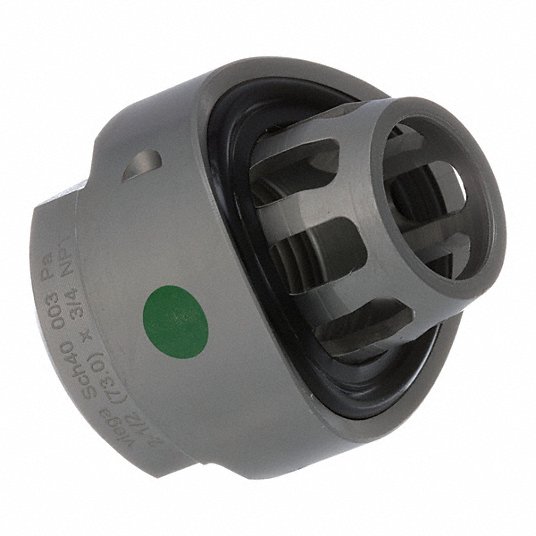

Viega 26900 Megapress Branch Con CS F/S40 EPDM 2-1/2X3/4 inches

Product Description

The VIEGA 26900 Megapress Branch Con CS F/S40 EPDM 2-1/2X3/4" is designed for schedule 10 and schedule 40 carbon steel pipes. This press-in branch connector creates a 3/4 in NPT threaded connection in accordance with ASME B1.20.1. The fitting is suitable for plumbing in industrial wastewater and other non-potable water applications.

• For use with Sch.40 carbon steel pipe only
• Corrosion resistant zinc nickel coating
• Viega Smart Connect technology helps easily identify unpressed connections

Product Highlights

The Viega MegaPress press-in branch connector requires no welding and poses no fire hazard, which is particularly important in restoration or retrofit work.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 26900
• Country of Origin: Germany

Technical Specifications

• Brand: VIEGA
• MPN: 26900
• Application: Non-Potable Water
• Fitting Shape: Branch Connector for Schedule 40 Pipe
• Finish/Coating: Zinc Nickel-Plated
• Overall Length: 1 21/32 in
• Connection Type: FNPT
• O-Ring Material: EPDM
• Fitting Material: Carbon Steel
• Fitting Pipe Size: 2 1/2 in, 3/4 in
• End Connection Type: Threaded
• Fitting Body Material: Zinc Nickel-Plated Carbon Steel
• Fitting Side A Pipe Size: 2 1/2 in
• Fitting Side B Pipe Size: 3/4 in
• Fitting Side B Connection Type: FNPT
• Includes Pre-Applied Thread Sealant: Yes
• Country of Origin (subject to change): Germany
• Pipe Schedule: 40
• Seal: EPDM
• Fitting Side A Connection Type: Press-fit
• Fitting Size: 2-1/2 in Pipe x 3/4 in Pipe
• Material Family: Steel
• Material Grade: Carbon Steel
• Manufacturer Part: 26900
• Manufacturer: Viega
• Domestic/Import: Import
• End Style: Press x FNPT
• Finish: Nickel Plated/Zinc Plated
• Fitting/Connector Type: Branch Connector
• Nominal Size: 2-1/2 x 3/4 In
• Pressure Rating: 200 psi
• Schedule Rating: SCH 40/STD
• Temperature Rating: 250 deg F
• Fitting Type: Branches
• Fitting Side 1 Pipe Size: 2 1/2 in
• Fitting Side 2 Pipe Size: 3/4 in
• Item: Crimp Adapter Fitting
• Specific Fitting Shape: Branch Connector for Schedule 40 Pipe
• Fitting Side 1 Connection Type: Press-fit
• Fitting Side 2 Connection Type: FNPT
