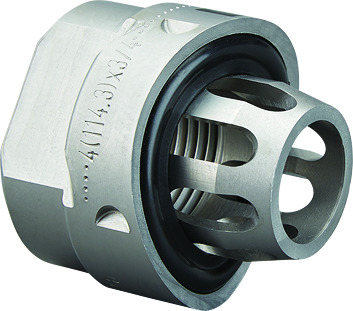

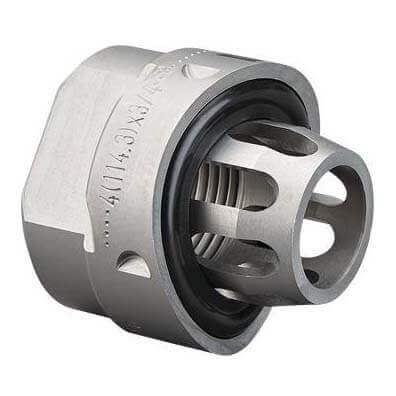

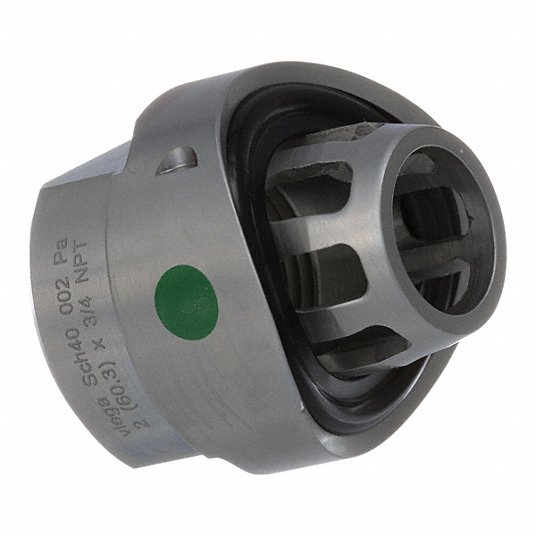

Viega 26895 Megapress Branch Connect 2 x 3/4 inches

Product Description

The VIEGA 26895 Megapress Branch Connect is designed for schedule 10 and schedule 40 carbon steel pipes, creating a 3/4 in NPT threaded connection in accordance with ASME B1.20.1. Suitable for plumbing in industrial wastewater and other non-potable water applications. Requires no welding and poses no fire hazard.

• For use with Sch.40 carbon steel pipe only
• Press Connection, Female Pipe Thread
• Carbon Steel
• Components: EPDM sealing elements

Product Highlights

The Viega Megapress branch connector is ideal for space-constrained environments and is installed with a battery-powered or corded pressing tool.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 26895
• Country of Origin: Germany

Technical Specifications

• Brand: VIEGA
• MPN: 26895
• Seal: EPDM
• Application: Hydronic
• Pipe Schedule: 40
• Diameter (Inches): 2"
• Size: 3/4"
• Connection Type: Press x FNPT
• Material: Carbon Steel
• Fitting Material: Zinc Nickel-Plated Carbon Steel
• Finish: Zinc Nickel-Plated
• O-Ring Material: EPDM
• Fitting Side A Connection Type: Press-fit
• Fitting Side A Pipe Size: 2 in
• Fitting Side B Connection Type: FNPT
• Fitting Side B Pipe Size: 3/4 in
• Overall Length: 1-21/32 in
• Includes Pre-Applied Thread Sealant: Pre-Applied Thread Sealant Included
• Fitting Size: 2 in Pipe x 3/4 in Pipe
• Dimensions: 1.69 in Dia x 1.65 in L
• Domestic/Import: Import
• End Style: Press x FNPT
• Nominal Size: 2 x 3/4 In
• Pressure Rating: 200 psi
• Schedule Rating: SCH 40/STD
• Series: Model 4812.35
• Temperature Rating: 250 deg F
• Product Length: 1.693"
• Product Height: 1.654"
• Product Weight: 0.439 lbs
• Product Width: 1.693"
• Item: Connector
• Specific Fitting Shape: Branch Connector For Schedule 40 Pipe
• For Media Type: Non-Potable Water
