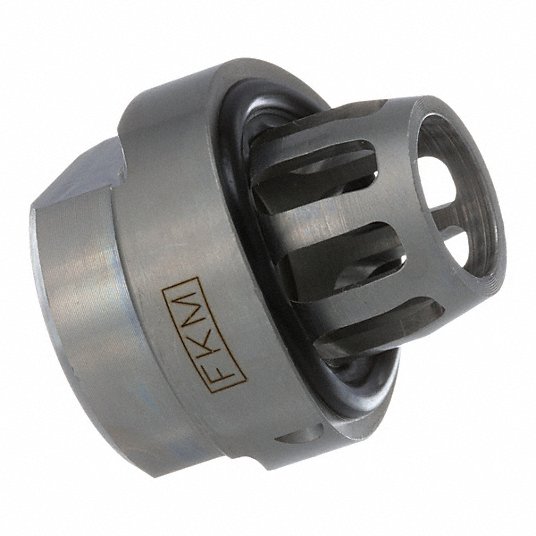

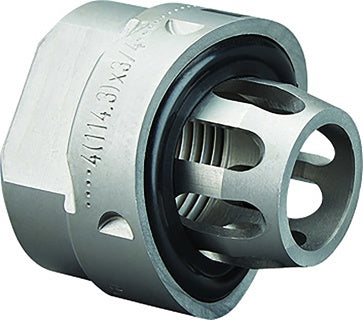

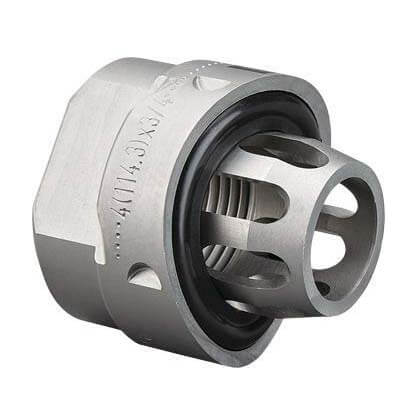

Viega 26855 megapress branch connector, 6 x 3/4 in

Product Description

The VIEGA 26855 MegaPress press-in branch connector is designed for schedule 10 and 40 carbon steel pipes, creating a 3/4 in NPT threaded connection. Suitable for tight spaces, it requires no welding, eliminating fire hazards. It is designed for non-potable water applications and features Smart Connect technology for secure connections.

• Designed for schedule 10 and schedule 40 carbon steel pipes
• Creates a 3/4 in NPT threaded connection in accordance with ASME B1.20.1
• Corrosion resistant zinc nickel coating

Product Highlights

The Viega MegaPress branch connector is ideal for creating secure, flameless connections in carbon steel piping systems, especially in space-constrained environments.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 26855
• Country of Origin: Germany

Technical Specifications

• Material: Carbon Steel
• Connection Type: Press x FNPT
• Application: Non-Potable Water
• Fitting Shape: Connector
• Finish/Coating: Zinc Nickel-Plated
• Overall Length: 1 21/32 in
• O-Ring Material: FKM
• Fitting Material: Carbon Steel
• Fitting Pipe Size: 3/4 in, 6 in
• End Connection Type: Threaded
• Fitting Body Material: Zinc Nickel-Plated Carbon Steel
• Fitting Side A Pipe Size: 6 in
• Fitting Side B Pipe Size: 3/4 in
• Fitting Side B Connection Type: FNPT
• Includes Pre-Applied Thread Sealant: Yes
• Size: 6 x 3/4 in
• Fitting/Connector Type: Branch Connector
• End Style: Press x FNPT
• Schedule Rating: SCH 40/STD
• Series: Model 4812.25
• Temperature Rating: 284 deg F
• Pressure Rating: 200 psi
• Domestic Import: Import
• Country Of Origin: DE
• Manufacturer: Viega
• Finish: Nickel Plated/Zinc Plated
• Category: MegaPress Press Fittings
• Warranty: 2 years
• Nominal Size: 6 x 3/4 In
• Pipe Schedule: SCH 40
• Seal: FKM
• Item: Connector
• Material Family: Steel
• Material Grade: Carbon Steel
• Manufacturer Part: 26855
• Connection: Press
• Fitting Size: 6 in Pipe x 3/4 in Pipe
