Viega 26845 3/4x3 Sch40 Brnch Conn

Product Description

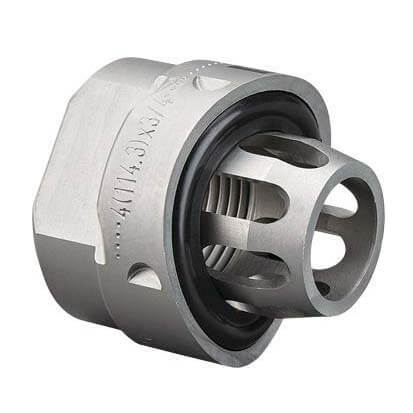

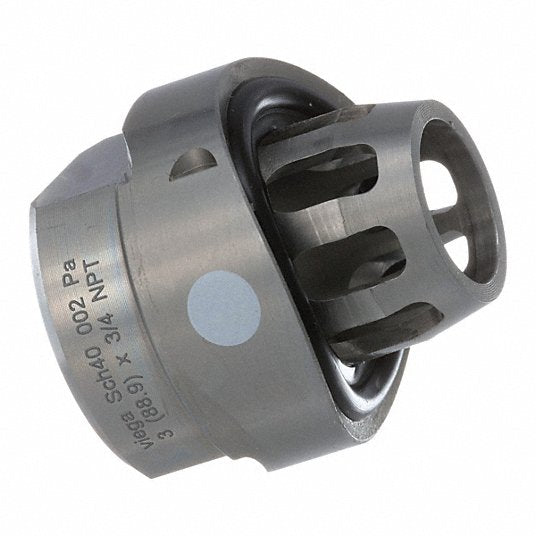

The VIEGA 26845 is a 3/4X3 Sch40 Brnch Conn. This megapress branch connector is made of carbon steel and features FKM sealing elements. It is designed for use with Schedule 40 carbon steel pipe. Suitable for plumbing in industrial wastewater and other non-potable water applications.

• For use with Schedule 40 carbon steel pipe only
• Carbon steel
• Press connection, female pipe thread

Product Highlights

The Viega 26845 branch connector is ideal for connecting pipe lengths together, routing systems, and managing media flow.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 26845
• Country of Origin: Germany

Technical Specifications

• Size: 3" x 3/4"
• Type: Transition Fittings
• Material: carbon steel, zinc-nickel coating
• Connection Type: Press x FNPT
• Series: Model 4812.25
• For Use With: Schedule 40 Carbon Steel Pipe Only
• Catalog Number: 26845
• Connection Size: 3 x 3/4|in
• Length: 1.65 in
• Item [Specifications]: Branch Connector
• Application [Specifications]: Non-Potable Water
• Fitting Shape [Specifications]: Connector
• Finish/Coating [Specifications]: Zinc Nickel-Plated
• Stop and Shape [Specifications]: Branch Connector for Schedule 40 Pipe
• O-Ring Material [Specifications]: FKM
• Fitting Material [Specifications]: Carbon Steel
• Fitting Pipe Size [Specifications]: 3/4 in, 3 in
• End Connection Type [Specifications]: Threaded
• Fitting Body Material [Specifications]: Zinc Nickel-Plated Carbon Steel
• Fitting Side A Pipe Size [Specifications]: 3 in
• Fitting Side B Pipe Size [Specifications]: 3/4 in
• Fitting Side B Connection Type [Specifications]: FNPT
• Includes Pre-Applied Thread Sealant [Specifications]: Yes
• Diameter (Inches): 3"
• Seal: FKM
• Pipe Schedule: 40
• Brand: VIEGA
• Fitting Shape: Branch Connector for Schedule 40 Pipe
• Fitting Material: Zinc Nickel-Plated Carbon Steel
• Finish: Zinc Nickel-Plated
• Fitting Side A Pipe Size: 3 in
• Fitting Side B Pipe Size: 3/4 in
• Overall Length: 1-21/32 in
• Includes Pre-Applied Thread Sealant: Pre-Applied Thread Sealant Included
• For Media Type: Potable Water
• Fitting Size: 3 in Pipe x 3/4 in Pipe
• Product Type: Plumbing Fitting
• Width: 1.69"
• Height: 1.65"
• Collection: MegaPress
• Dimensions: 1.69 in Dia x 1.65 in L
• End Style: Press x FNPT
• Nominal Size: 3 x 3/4 In
• Pressure Rating: 200 psi
• Schedule Rating: SCH 40/STD
• Temperature Rating: 284 deg F
