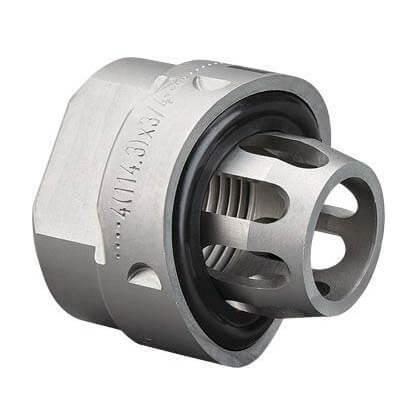

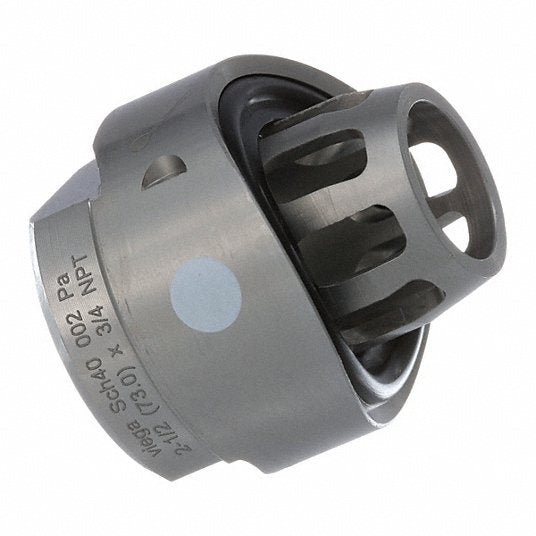

Viega 26840 Megapress Branch Con Cs~;F/S40 Fkm 2-1/2X3/4 inches

Product Description

The VIEGA 26840 Megapress Branch Con CS~;F/S40 Fkm 2-1/2X3/4" is designed for schedule 10 and schedule 40 carbon steel pipes. This press-in branch connector creates a 3/4 in NPT threaded connection in accordance with ASME B1.20.1. Suitable for plumbing in industrial wastewater and other non-potable water applications.

• For use with Sch.10 carbon steel pipe only
• Press Connection, Female Pipe Thread
• Carbon Steel

Product Highlights

The Viega MegaPress fitting is for commercial and industrial piping systems. It requires no welding and poses no fire hazard, which is particularly important in restoration or retrofit work.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 26840
• Country of Origin: Germany

Technical Specifications

• Size: 2-1/2" x 3/4"
• Type: Transition Fittings
• Material: carbon steel, zinc-nickel coating
• Fitting Shape: Branch Connector for Schedule 40 Pipe
• Connection Type: FNPT
• O-Ring Material: FKM
• Fitting Pipe Size: 2 1/2 in, 3/4 in
• End Connection Type: Threaded
• Fitting Body Material: Zinc Nickel-Plated Carbon Steel
• Fitting Side A Pipe Size: 2 1/2 in
• Fitting Side B Pipe Size: 3/4 in
• Fitting Side B Connection Type: FNPT
• Includes Pre-Applied Thread Sealant: Yes
• Country of Origin: Germany
• Overall Length: 1 21/32 in
• Finish: Zinc Nickel-Plated
• Series: MegaPress Hydronic
• Part Type: Branch Connector
• Sealing Element: FKM
• Identification: White Dot
• Domestic/Import: Import
• End Style: Press x FNPT
• Nominal Size: 2-1/2 x 3/4 In
• Pressure Rating: 200 psi
• Schedule Rating: SCH 40/STD
• Temperature Rating: 284 deg F
