Viega 26835 2 inches x 3/4 inches Sch40 Brnch Conn

Product Description

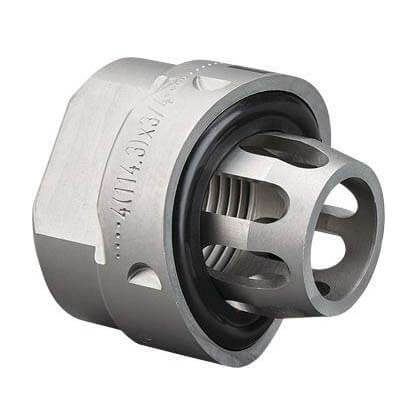

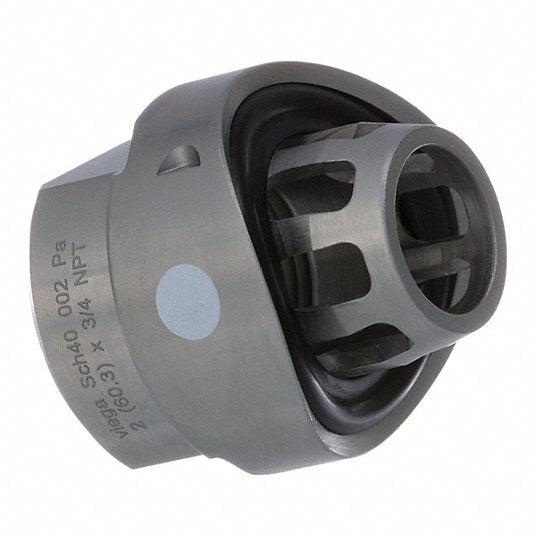

The VIEGA 26835 is a 2" x 3/4" MegaPress press-in branch connector designed for schedule 10 and schedule 40 carbon steel pipes. It creates a 3/4 in NPT threaded connection in accordance with ASME B1.20.1, and is suitable where space is at a premium. The press fittings are installed with a battery-powered or corded pressing tool.

• Approved for more applications than any other carbon steel pipe press fitting system
• Corrosion resistant zinc nickel coating
• Viega Smart Connect technology helps easily identify unpressed connections
• Requires no welding and poses no fire hazard

Product Highlights

The MegaPress branch connector is designed for schedule 10 and schedule 40 carbon steel pipes. It is suitable for use in pipe manifold installation for sensors, thermometers or drains.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 26835
• Country of Origin: Germany

Technical Specifications

• Size: 2", 3/4"
• Type: Transition Fittings
• Material: Carbon Steel
• Connection Type: Press x FNPT
• Item [Specifications]: Branch Connector
• Application [Specifications]: Non-Potable Water
• Fitting Shape [Specifications]: Connector
• Finish/Coating [Specifications]: Zinc Nickel-Plated
• Overall Length [Specifications]: 1 21/32 in
• Stop and Shape [Specifications]: Branch Connector for Schedule 40 Pipe
• O-Ring Material [Specifications]: FKM
• Fitting Material [Specifications]: Carbon Steel
• Fitting Pipe Size [Specifications]: 2 in, 3/4 in
• End Connection Type [Specifications]: Threaded
• Fitting Body Material [Specifications]: Zinc Nickel-Plated Carbon Steel
• Fitting Side A Pipe Size [Specifications]: 2 in
• Fitting Side B Pipe Size [Specifications]: 3/4 in
• Fitting Side B Connection Type [Specifications]: FNPT
• Includes Pre-Applied Thread Sealant [Specifications]: Yes
• Diameter (Inches): 2"
• Pipe Schedule: 40
• Seal: FKM
• Brand: VIEGA
• MEGAPRESS: MEGAPRESS
• Finish: Zinc Nickel-Plated
• Fitting Side A Pipe Size: 2 in
• Fitting Side B Connection Type: FNPT
• Fitting Side B Pipe Size: 3/4 in
• Overall Length: 1-21/32 in
• Includes Pre-Applied Thread Sealant: Pre-Applied Thread Sealant Included
• For Media Type: Potable Water
• Fitting Size: 2 in Pipe x 3/4 in Pipe
• Fitting Side 1 Pipe Size: 2 in
• Fitting Side 2 Pipe Size: 3/4 in
• Item: Crimp Adapter Fitting
• Specific Fitting Shape: Branch Connector for Schedule 40 Pipe
• Application: Non-Potable Water
• Fitting Shape: Branch Connector for Schedule 40 Pipe
• Fitting Side 2 Connection Type: FNPT
• Sub Brand: MegaPress
• Item Name: Branch Connector
• Series/Model: Model 4812.25
• Nominal Size: 2 x 3/4 In
• Maximum Pressure: 200 PSI
• Temperature Rating: 284 DEG F
• Industry Standards: ASME B1.20.1
• Additional Specifications: Suitable For Use With: 40 Carbon Steel Pipes, Includes: FKM Sealing Element
• Pressure Rating: 200 psi
• Schedule Rating: SCH 40/STD
• End Style: Press x FNPT
