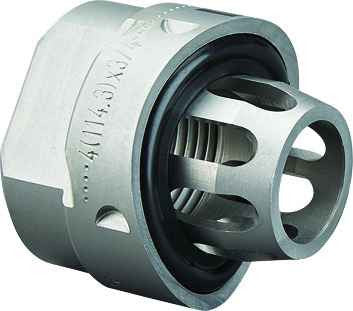

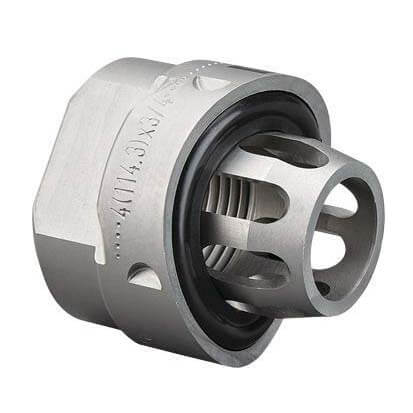

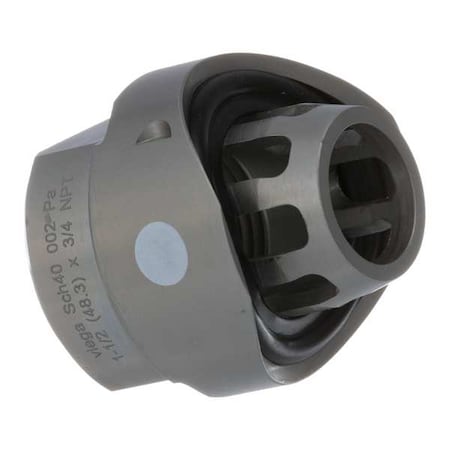

Viega 26830 MegaPress Branch Connector 1-1/2 inches x 3/4 inches

Product Description

The VIEGA 26830 MegaPress Branch Connector is made of carbon steel. Designed for schedule 10 and schedule 40 carbon steel pipes, it creates a 3/4 in NPT threaded connection in accordance with ASME B1.20.1. Suitable for pipe manifold installation for sensors, thermometers, or drains.

• For use with Sch.10 carbon steel pipe only
• Press Connection, Female Pipe Thread
• Components: FKM sealing elements

Product Highlights

The Viega MegaPress branch connector requires no welding and poses no fire hazard, which is particularly important in restoration or retrofit work.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 26830
• Country of Origin: Germany

Technical Specifications

• Brand: Viega
• MPN: 26830
• Product Type: Tee
• Product Group: Plumbing Fittings
• Material: Carbon Steel
• Size: 1-1/2", 3/4"
• Connection Type: Press x FNPT
• Item [Specifications]: Branch Connector
• Application [Specifications]: Non-Potable Water
• Fitting Shape [Specifications]: Connector
• Finish/Coating [Specifications]: Zinc Nickel-Plated
• Overall Length [Specifications]: 1 21/32 in
• Stop and Shape [Specifications]: Branch Connector for Schedule 40 Pipe
• O-Ring Material [Specifications]: FKM
• Fitting Material [Specifications]: Carbon Steel
• Fitting Pipe Size [Specifications]: 1 1/2 in, 3/4 in
• End Connection Type [Specifications]: Threaded
• Fitting Body Material [Specifications]: Zinc Nickel-Plated Carbon Steel
• Fitting Side A Pipe Size [Specifications]: 1 1/2 in
• Fitting Side B Pipe Size [Specifications]: 3/4 in
• Fitting Side B Connection Type [Specifications]: FNPT
• Includes Pre-Applied Thread Sealant [Specifications]: Yes
• Country of Origin (subject to change) [Specifications]: Germany
• Model: 4812.25
• Sealing Element: FKM
• Application: For use with Sch. 40 carbon steel pipe
• Connection Size 1: 1-1/2 in
• Connection Size 2: 3/4 in
• Connection Type 1: Press
• Connection Type 2: FPT
• Finish: Zinc-Nickle-Coated
• Fitting Type: Connector
• For Use With: SCH 40 Carbon Steel Pipes
• Material Construction: Carbon Steel
• Series: Model 4812.25
• Dimensions: 1.69 in Dia x 1.65 in L
• Domestic/Import: Import
• End Style: Press x FNPT
• Nominal Size: 1-1/2 x 3/4 In
• Pressure Rating: 200 psi
• Schedule Rating: SCH 40/STD
• Temperature Rating: 284 deg F
• Sub Brand: MegaPress
• Item Name: Branch Connector
• Outside Diameter: 1.69 IN
• Length: 1.65 IN
• Maximum Pressure: 200 PSI
• Industry Standards: ASME B1.20.1
• Additional Specifications: Suitable For Use With: 40 Carbon Steel Pipes, Includes: FKM Sealing Element
• Material Type: Carbon Steel
• Product Dimension: 1-1/2'' x 3/4''
• Department: Plumbing
• Product Subgroup: Tees
• Product Length: 1.693"
• Product Height: 1.654"
• Product Weight: 0.432 lbs
• Product Width: 1.693"
