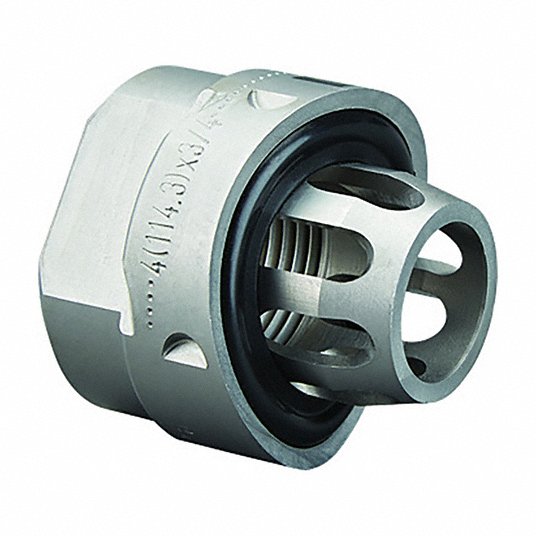

Viega 26825 MegaPress Branch Connector 6 x 3/4 Inch

Product Description

The VIEGA 26825 MegaPress press-in branch connector is designed for SCH 10 and SCH 40/STD carbon steel pipes. This branch connector creates a 3/4 in NPT threaded connection in accordance with ASME B1.20.1. Suitable for use with non-potable water, it requires no welding and poses no fire hazard.

• For use with Sch.10 carbon steel pipe only
• Press Connection, Female Pipe Thread
• Carbon Steel
• FKM sealing elements

Product Highlights

The MegaPress branch connector is ideal for space-constrained environments and is installed with a battery-powered or corded pressing tool.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 26825
• Country of Origin: Germany

Technical Specifications

• Size: 3/4"
• Material: Carbon Steel
• Connection Type: Press x FNPT
• Diameter (Inches): 6"
• Item: Branch Connector
• Application: Non-Potable Water
• Fitting Shape: Connector
• Finish/Coating: Zinc Nickel-Plated
• Overall Length: 1 21/32 in
• Stop and Shape: Branch Connector for Schedule 10 Pipe
• O-Ring Material: FKM
• Fitting Material: Zinc Nickel-Plated Carbon Steel
• Fitting Pipe Size: 3/4 in, 6 in
• End Connection Type: Threaded
• Fitting Side A Pipe Size: 6 in
• Fitting Side B Pipe Size: 3/4 in
• Fitting Side B Connection Type: FNPT
• Includes Pre-Applied Thread Sealant: Yes
• Country of Origin (subject to change): Germany
• Seal: FKM
• Pipe Schedule: 10
• Domestic/Import: Import
• End Style: Press x FNPT
• Fitting/Connector Type: Branch Connector
• Nominal Size: 6 x 3/4 In
• Pressure Rating: 200 psi
• Schedule Rating: SCH 10
• Series: 4812.2
• Temperature Rating: 284 deg F
• Type: Press-In
• For Media Type: Potable Water
• Fitting Size: 6 in Pipe x 3/4 in Pipe
• Sub Brand: MegaPress
• Item Name: Branch Connector
• Maximum Pressure: 200 PSI
• Industry Standards: ASME B1.20.1
• Additional Specifications: Suitable For Use With: 10 Carbon Steel Pipes, Includes: FKM Sealing Element
• Weight: 0.441 LB
