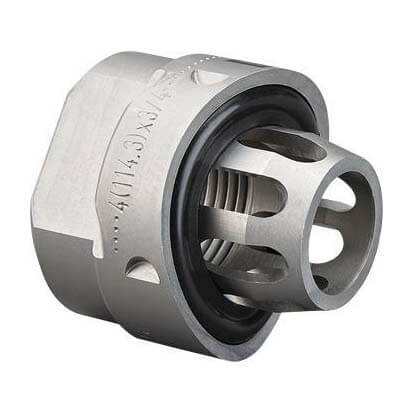

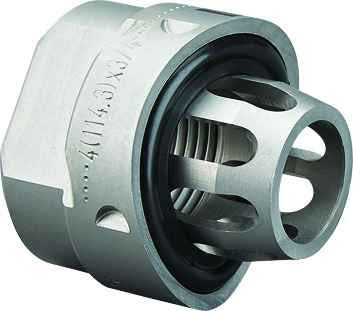

Viega 26820 MegaPress MPFKM SCH10 Press-In FPT Branch Connector 4 inches x 3/4 inches

Product Description

The VIEGA 26820 MegaPress press-in branch connector is designed for SCH 10 and SCH 40/STD carbon steel pipes. It creates a 3/4 in NPT threaded connection in accordance with ASME B1.20.1. Suitable for use with ASTM SCH 5 to SCH 40 carbon steel pipe. The press fittings are installed with a battery-powered or corded pressing tool.

• Engineered with a 420 stainless steel grip ring plus a 304 stainless steel separator ring for sizes 1/2 in to 2 in and a PBT separator ring for sizes 2-1/2 in to 4 in fittings
• Approved for more applications than any other carbon steel pipe press fitting system
• Suitable for use with ASTM SCH 5 to SCH 40/STD carbon steel pipe

Product Highlights

The Viega MegaPress press-in branch connector requires no welding and poses no fire hazard, which is particularly important in restoration or retrofit work.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 26820
• Country of Origin: United States

Technical Specifications

• Size [Features]: 3/4"
• Material [Features]: Carbon Steel
• Connection Type [Features]: Press x FNPT
• Diameter (Inches) [Features]: 4"
• End Style: Press x FNPT
• Finish: Zinc Nickel Coated
• Fitting/Connector Type: Branch Connector
• Material: Carbon Steel
• Nominal Size: 4 X 3/4 IN
• Pressure Rating: 200 psi
• Schedule Rating: SCH 10
• Series: 4812.2
• Temperature Rating: 284 deg F
• Type: Press-In
• Application: For use with Sch. 10 carbon steel pipe
• Sub Brand: MegaPress
• Item Name: Branch Connector
• Connection Type: Press X FPT
• Outside Diameter: 1.69 IN
• Length: 1.65 IN
• Maximum Pressure: 200 PSI
• Industry Standards: ASME B1.20.1
• Additional Specifications: Suitable For Use With: 10 Carbon Steel Pipes, Includes: FKM Sealing Element
• Weight: 0.445 LB
• Material Type: Carbon Steel
• Product Dimension: 4'' x 3/4''
