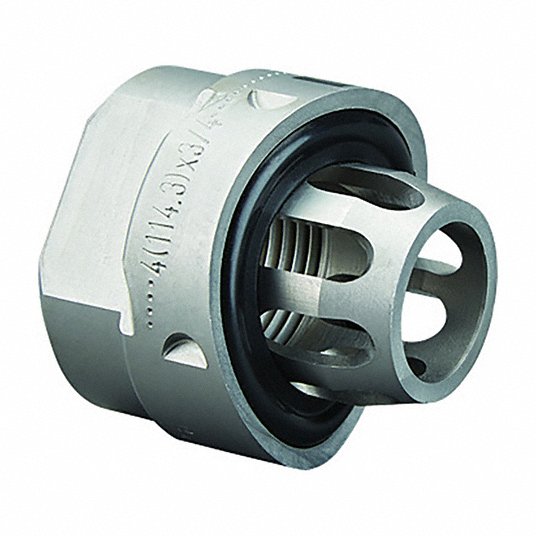

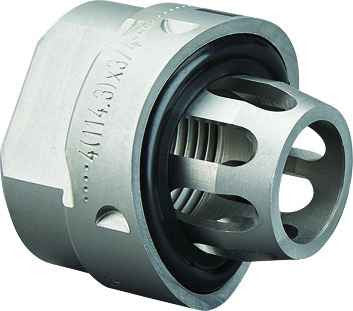

Viega 26815 mpfkm sch10 press-in fpt branch connector 3 inches x 3/4 inches

Product Description

The VIEGA 26815 MPFKM SCH10 press-in FPT branch connector is designed for SCH 10 and SCH 40/STD carbon steel pipes. It creates a 3/4 in NPT threaded connection in accordance with ASME B1.20.1, and is suitable where space is at a premium. The press-in branch connector requires no welding and poses no fire hazard.

• Designed for SCH 10 and SCH 40/STD carbon steel pipes
• Creates a 3/4 in NPT threaded connection in accordance with ASME B1.20.1
• Suitable where space is at a premium

Product Highlights

The Viega MegaPress press-in branch connector is easy to install with a battery-powered or corded pressing tool. It is engineered with a 420 stainless steel grip ring and a corrosion-resistant zinc nickel coating.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 26815
• Country of Origin: Germany

Technical Specifications

• Size: 3" x 3/4"
• Material: Carbon Steel
• Fitting Shape: Branch Connector for Schedule 10 Pipe
• Finish: Zinc Nickel-Plated
• O-Ring Material: FKM
• Fitting Side A Pipe Size: 3 in
• Fitting Side B Connection Type: FNPT
• Fitting Side B Pipe Size: 3/4 in
• Overall Length: 1 21/32 in
• Includes Pre-Applied Thread Sealant: Yes
• End Style: Press x FNPT
• Type: Press-In
• Schedule Rating: SCH 10
• Series: 4812.2
• Temperature Rating: 284 deg F
• Pressure Rating: 200 psi
• Country Of Origin: Germany
• Connection Type: P x FPT
• Maximum Pressure: 200 PSI
• Industry Standards: ASME B1.20.1
• Additional Specifications: Suitable For Use With: 10 Carbon Steel Pipes, Includes: FKM Sealing Element
• Application: Non-Potable Water
• For Media Type: Potable Water
• Product Dimension: 3'' x 3/4''
• Product Length: 1.693"
• Product Height: 1.654"
• Product Weight: 0.452 lbs
• Product Width: 1.693"
• Outside Diameter: 1.69 IN
• Length: 1.65 IN
