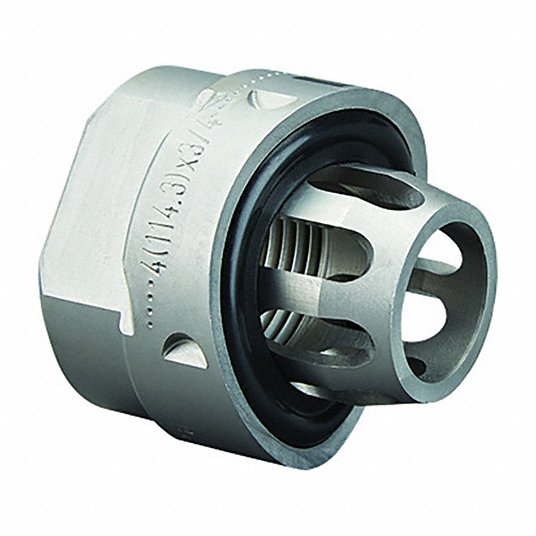

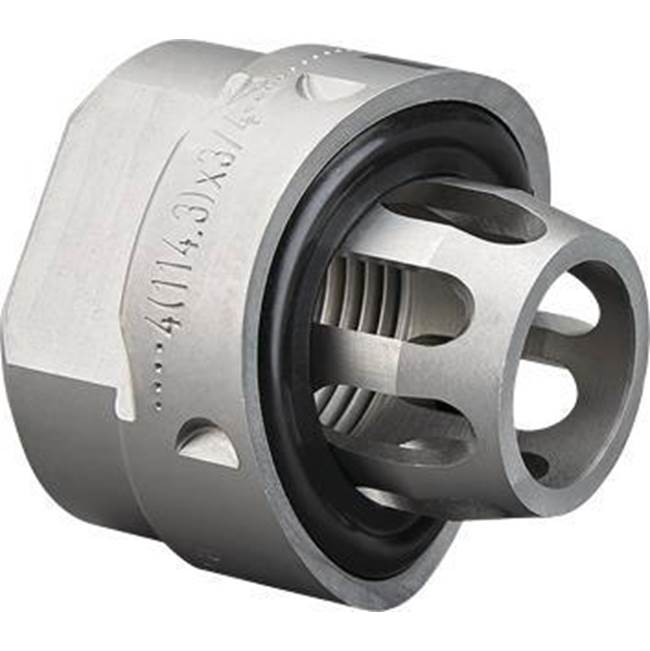

Viega 26810 mpfkm sch10 press-in fpt branch connector 2-1/2 inches x 3/4 inches

Product Description

The VIEGA 26810 MPFKM SCH10 press-in FPT branch connector is designed for SCH 10 carbon steel pipes. This pressing branch connector creates a 3/4 IN NPT threaded connection in accordance with ASME B1.20.1. It is suitable for use in pipe manifold installation for sensors, thermometers or drains.

• For use with Sch.10 carbon steel pipe only
• Press connection, female pipe thread
• Carbon steel construction with zinc-nickel coating
• FKM sealing elements

Product Highlights

The Viega MegaPress press-in branch connector requires no welding and poses no fire hazard, which is particularly important in restoration or retrofit work.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 26810
• Country of Origin: Germany

Technical Specifications

• Size: 2-1/2" x 3/4"
• Type: Transition Fittings
• Material: carbon steel, zinc-nickel coating
• Connection Type: Press x FNPT
• Diameter (Inches): 2-1/2"
• Item [Specifications]: Branch Connector
• Application [Specifications]: Non-Potable Water
• Fitting Shape [Specifications]: Branch Connector for Schedule 10 Pipe
• Finish/Coating [Specifications]: Zinc Nickel-Plated
• Overall Length: 1 21/32 in
• Stop and Shape [Specifications]: Branch Connector for Schedule 10 Pipe
• O-Ring Material: FKM
• Fitting Material: Carbon Steel
• Fitting Pipe Size [Specifications]: 2 1/2 in, 3/4 in
• End Connection Type [Specifications]: Threaded
• Fitting Body Material [Specifications]: Zinc Nickel-Plated Carbon Steel
• Fitting Side A Pipe Size [Specifications]: 2 1/2 in
• Fitting Side B Pipe Size [Specifications]: 3/4 in
• Fitting Side B Connection Type [Specifications]: FNPT
• Includes Pre-Applied Thread Sealant [Specifications]: Yes
• Pipe Schedule: 10
• Seal: FKM
• Sub Brand: MegaPress
• Item Name: Branch Connector
• Series/Model: Model 4812.2
• Nominal Size: 2-1/2 X 3/4 IN
• Finish/Color: Zinc Nickel Coated
• Outside Diameter: 1.69 IN
• Length: 1.65 IN
• Maximum Pressure: 200 PSI
• Temperature Rating: 284 DEG F
• Industry Standards: ASME B1.20.1
• Additional Specifications: Suitable For Use With: 10 Carbon Steel Pipes, Includes: FKM Sealing Element
• Weight: 0.458 LB
• Product Type: Plumbing Fitting
• Width: 1.69"
• Height: 1.65"
• Finish: No Finish Group
• Collection: MegaPress
• For Media Type: Potable Water
• Fitting Size: 2-1/2 in Pipe x 3/4 in Pipe
• Model: 4812.2
