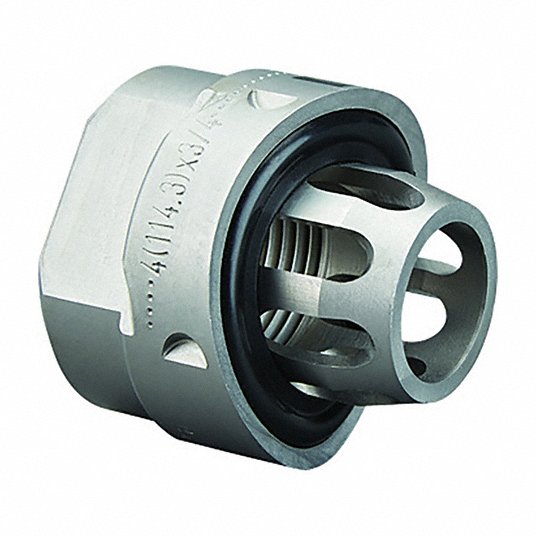

Viega 26800 mpfkm sch10 press-in fpt branch connector

Product Description

The Viega 26800 MPFKM SCH10 press-in FPT branch connector is made of carbon steel. This MegaPress branch connector creates a 3/4 in NPT threaded connection in accordance with ASME B1.20.1. It is suitable for use with SCH 10 carbon steel pipe only and is designed for space-constrained environments.

• For use with Sch.10 carbon steel pipe only
• Press Connection, Female Pipe Thread
• Carbon Steel
• FKM sealing elements

Product Highlights

The Viega MegaPress branch connector requires no welding and poses no fire hazard, which is particularly important in restoration or retrofit work. The press fittings are installed with a battery-powered or corded pressing tool.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 26800
• Country of Origin: Import

Technical Specifications

• Size: 1-1/2" x 3/4"
• Type: Transition Fittings
• Material: Carbon Steel
• Connection Type: Press x FNPT
• Diameter (Inches): 1-1/2"
• Pipe Schedule: 10
• Seal: FKM
• Domestic/Import: Import
• End Style: Press x FNPT
• Finish: Zinc Nickel Coated
• Fitting/Connector Type: Branch Connector
• Nominal Size: 1-1/2 x 3/4 In
• Pressure Rating: 200 psi
• Schedule Rating: SCH 10
• Series: 4812.2
• Temperature Rating: 284 deg F
• Fitting Shape: Branch Connector for Schedule 10 Pipe
• Fitting Material: Zinc Nickel-Plated Carbon Steel
• O-Ring Material: FKM
• Fitting Side A Pipe Size: 1-1/2 in
• Fitting Side B Connection Type: FNPT
• Fitting Side B Pipe Size: 3/4 in
• Overall Length: 1-21/32 in
• Includes Pre-Applied Thread Sealant: Pre-Applied Thread Sealant Included
• For Media Type: Potable Water
• Fitting Size: 1-1/2 in Pipe x 3/4 in Pipe
• Outside Diameter: 1.69 IN
• Length: 1.65 IN
• Maximum Pressure: 200 PSI
• Industry Standards: ASME B1.20.1
• Additional Specifications: Suitable For Use With: 10 Carbon Steel Pipes, Includes: FKM Sealing Element
• Weight: 0.454 LB
