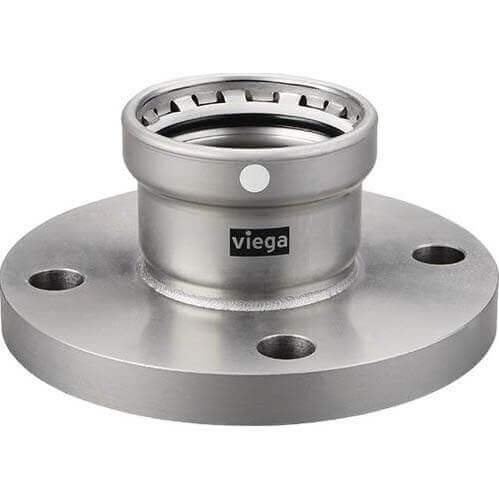

Viega 26785 MegaPress XL Flange 4 Inch 8 Bolt Pattern

Product Description

The Viega 26785 MegaPress XL Flange is a reliable solution designed for use with Schedule 5 to Schedule 40 carbon steel pipes. This carbon steel flange ensures safe and efficient connection using press technology. Ideal for applications in chilled water, hydronic heating, compressed air, and fire sprinkler systems.

• For use with Schedule 5 to Schedule 40 carbon steel pipes
• Equipped with FKM sealing elements
• Requires MegaPress XL rings and PressBooster/Z3 actuator for installation

Product Highlights

This MegaPress XL Flange provides a secure connection for various industrial applications, including chilled water, hydronic heating, compressed air, and fire sprinklers. It is compatible with multiple steel pipe standards and operates effectively under high pressure.

Product Information

Standard Information

• Brand: Viega
• MPN: 26785
• Product Type: MegaPress XL Flange

Technical Specifications

• Size: 4 inches
• Material: Carbon Steel
• Weight: 13.198 pounds
• Connection Type: Press
• Maximum Operating Pressure: 200 psi
• Temperature Range: 14 degrees to 284 degrees Fahrenheit
• Standards: FM, LC1002, PS117, TSSA, UL
• Country of Origin: Germany
