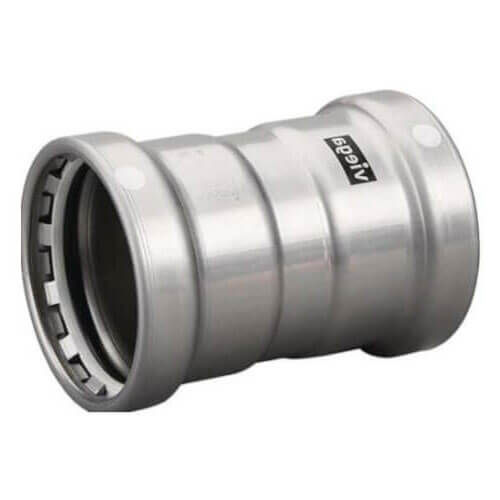

Viega 26680 MegaPress XL Coupling with Stop 4 Inch

Product Description

The Viega 26680 MegaPress XL Coupling with Stop is designed for a variety of applications including chilled water, hydronic heating, compressed air, and fire sprinkler systems. This coupling is suitable for use with Schedule 5 to Schedule 40 carbon steel pipes, making it versatile for many plumbing needs.

• Smart connect technology
• Must be installed with MegaPress XL rings and PressBooster
• Includes FKM sealing element

Product Highlights

This Viega MegaPress XL coupling ensures a strong and reliable connection with press-fit technology. Ideal for non-potable water systems and offers compatibility with various pipe sizes and fittings.

Product Information

Standard Information

• Brand: Viega
• MPN: 26680

Technical Specifications

• Material: Carbon Steel
• Maximum Pressure Rating: 200 PSI
• Maximum Temperature Rating: 284 degrees F
• Minimum Temperature Rating: 14 degrees F
• Connection Type: Press x Press
• Connection Size: 4 inches
• Finish/Coating: Zinc Nickel-Plated
• Compliance Standards: FM Class 1920, CRN OA14541.6, ICC LC 1002, IAPMO PS117, ASME B31, NFPA 13, 13D and 13R, 31, 54
