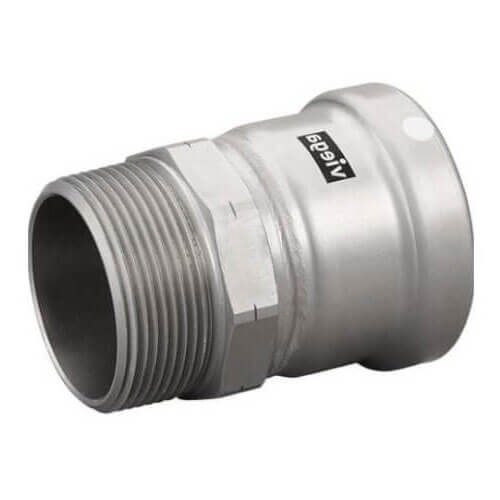

Viega 26640 2-1/2 MegaPress XL Male Adapter (Press x Male)

Product Description

The Viega MegaPress XL Male Adapter with MPN 26640 is designed for use with Schedule 5 to Schedule 40 carbon steel pipe. This adapter combines a press connection with a male pipe thread for a secure and reliable fit.

• Compatible with Sch. 5 to Sch. 40 carbon steel pipe
• Constructed from durable carbon steel
• Requires MegaPress XL rings and PressBooster for installation

Product Highlights

This adapter is built to support a variety of applications, including chilled water, hydronic heating, compressed air, and fire sprinkler systems.

Product Information

Standard Information

• Material: Carbon Steel
• Connection Type: Press x Male Pipe Thread

Technical Specifications

• Sizes: 2-1/2 inches
• Maximum Pressure Rating: 200 PSI
• Maximum Temperature Rating: +284 degrees F
• Minimum Temperature Rating: +14 degrees F
• Weight: 1.895 lbs
• Length: 4.55 inches
• Standards Met: FM Class 1920, CRN OA14541.6, ICC LC 1002, IAPMO PS117, ASME B31, NFPA 13, 13D, and 13R
• Installation Requirement: Must be used with MegaPress XL rings and PressBooster/Z3 actuator
