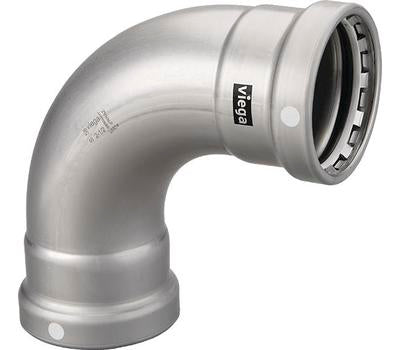

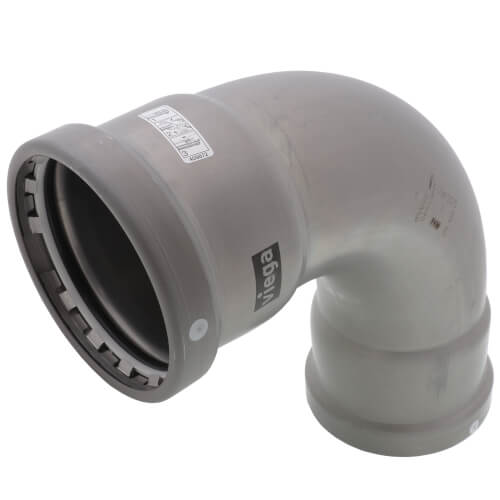

Viega 26505 MegaPress XL 90-Degree Elbow 3 Inch

Product Description

The Viega 26505 MegaPress XL 90-Degree Elbow is a versatile fitting designed for use in various pipe systems. This elbow is essential for chilled water, hydronic heating, compressed air, and fire sprinkler applications. It is made from durable carbon steel and features a press connection design, ensuring a secure and leak-free fit.

• For use with Schedule 5 to Schedule 40 carbon steel pipe
• Carbon steel with FKM sealing elements
• Must be installed with MegaPress XL rings and PressBooster/Z3 actuator

Product Highlights

This Viega elbow fitting features smart connect technology, making it reliable for various non-potable water applications. Its zinc nickel-plated finish and 200 PSI pressure rating ensure durability and high performance.

Product Information

Standard Information

• Model: 4816XL
• Application: Non-Potable Water

Technical Specifications

• Material: Carbon Steel
• Bend Angle: 90 degrees
• Selling Size: 3 inches
• Connection Type: Press x Press
• Maximum Pressure Rating: 200 PSI
• Operating Temperature Range: 14 to 284 Degrees F
• Specifications Met: FM Class 1920, CRN OA14541.6, ICC LC1002, IAPMO PS 117, ASME B31, NFPA 13, 13D, 13R, 31, 54
• UPC: 691514265056
