Viega 26500 MegaPress XL 90-Degree Elbow 2-1/2 Inch

Product Description

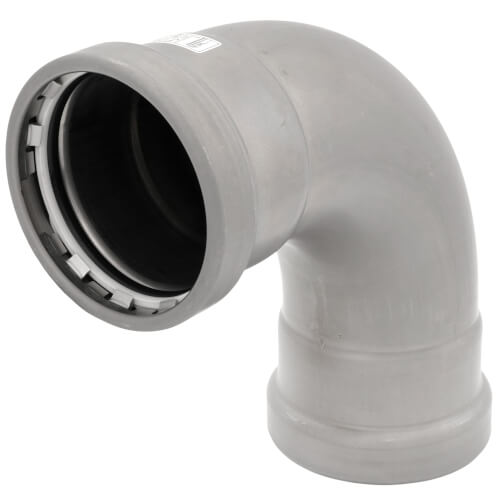

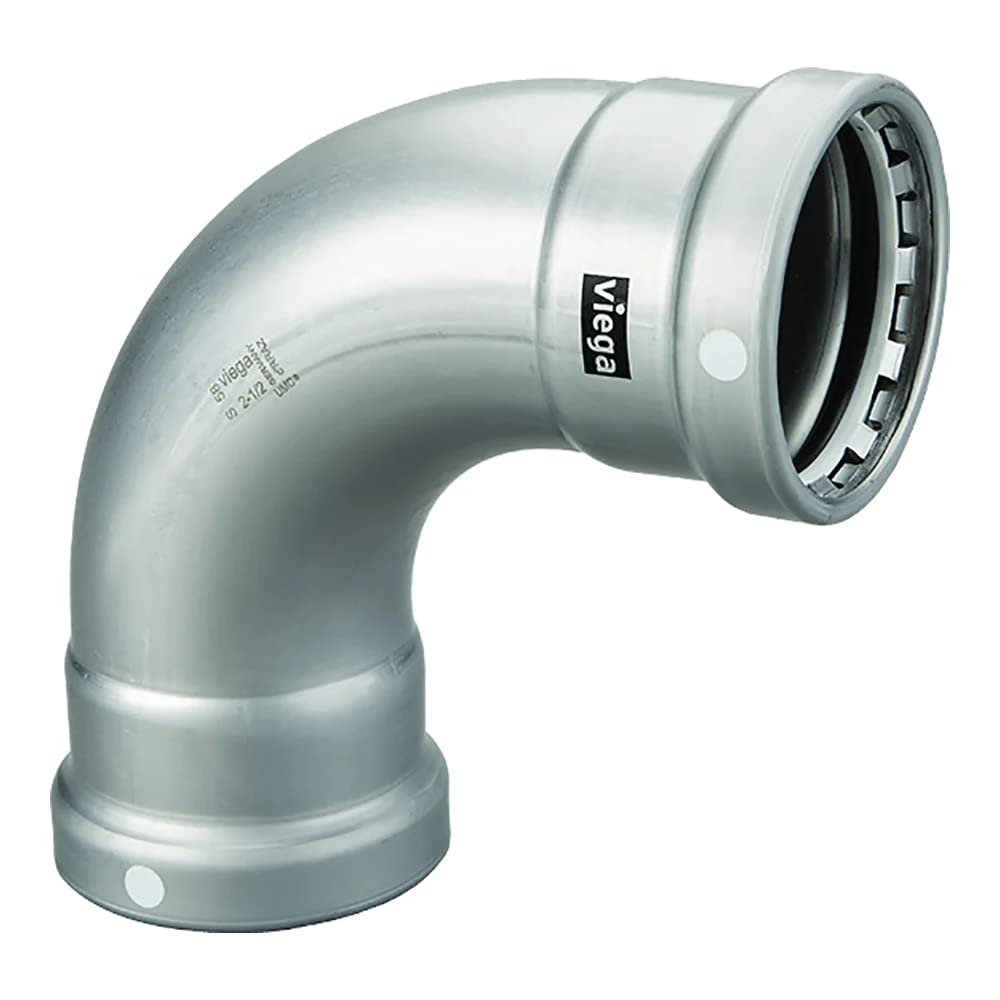

The Viega MegaPress XL 90-Degree Elbow, model 26500, is a robust carbon steel elbow designed for efficient piping installations. Suitable for use with Schedule 5 to Schedule 40 carbon steel pipes, this product ensures a secure and leak-proof connection.

• High compatibility with chilled water, hydronic heating, and fire sprinkler applications.
• Equipped with FKM sealing elements for enhanced durability and performance.
• Pressure-ready with a capability of up to 200 PSI.

Product Highlights

Manufactured by Viega, this elbow fitting is crafted from carbon steel and features a press connection type, making installations quick and efficient without the need for welding. The product also includes smart connect technology to easily identify unpressed connections during installation.

Product Information

Standard Information

• Material: Carbon Steel
• Angle: 90 Degrees

Technical Specifications

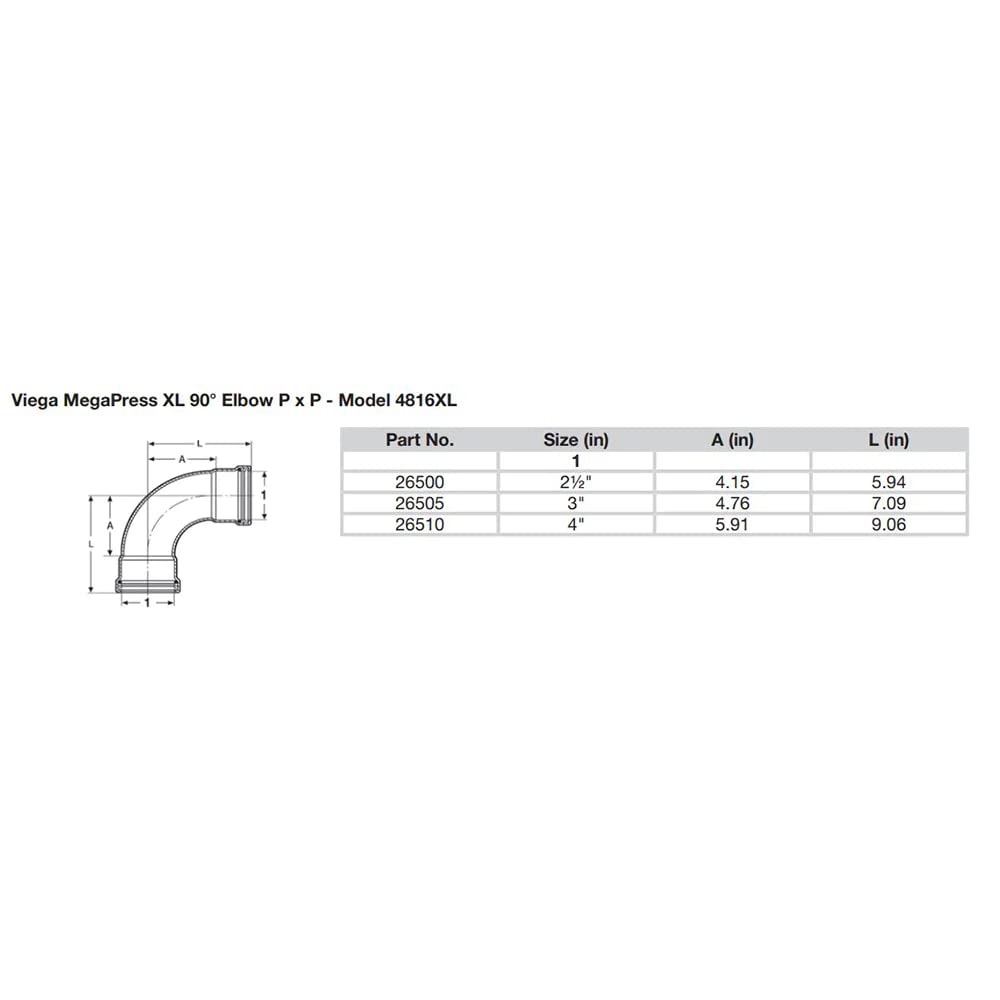

• Size: 2-1/2 inches x 2-1/2 inches
• Connection Type: Press x Press
• Operating Pressure: Up to 200 PSI
• Operating Temperature: 14 to 284 Degrees Fahrenheit
• Standards Met: FM, UL, LC1002, PS117, TSSA
• Sealing Material: FKM
• Finish: Zinc Nickel-Plated
