Product Description

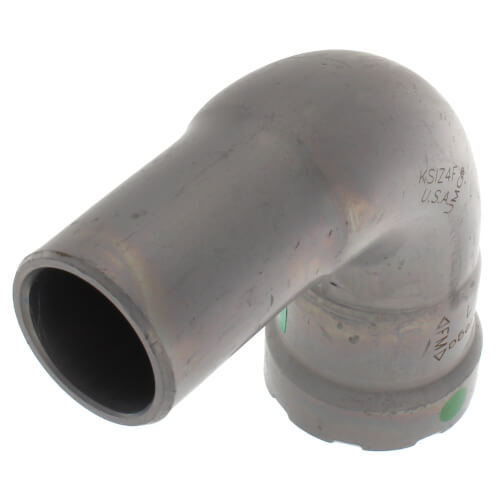

The Viega MegaPress 90-Degree Street Elbow is a high-performing fitting designed for various piping applications, made from robust carbon steel. It is ideal for systems such as chilled water, hydronic heating, compressed air, and fire sprinkler applications.
- Utilizes smart connect technology ensuring reliable, leak-proof connections.
- Compatible with ASTM A53, A106, A135, and A795 Schedule 5 to 40 carbon steel pipes.
- Features a press connection on one side and a female threaded connection on the other, designed for easy installation.
Product Highlights
This elbow allows for a 90-degree change in pipe direction, providing versatility and ease of use in fitting assembly. It's specially coated with zinc nickel to resist corrosion and can handle pressures up to 200 psi.
Product Information
Standard Information
-
Material: Carbon Steel
-
Size: 1 inch
-
Angle: 90 degrees
Technical Specifications
-
Connection Type: Press x Street
-
Operating Temperature Range: 0 to 250 Degrees Fahrenheit
-
Pressure Rating: Maximum 200 psi
-
Standards Compliance: Complies with ABS, CRN, FM, ICC-ES, and more.
