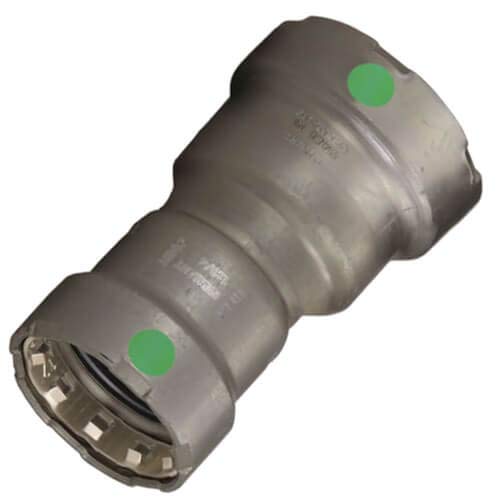

Viega 25945 MegaPress Reducer Coupling 1-1/4 x 3/4 Carbon Steel

Product Description

The Viega 25945 MegaPress Reducer Coupling is designed for quick and secure pipe fitting solutions. This 1-1/4 x 3/4 inch reducer coupling from Viega uses carbon steel and is ideal for applications in hydronic heating, compressed air, and fire protection.

• Patented Smart Connect technology
• Compatible with Schedule 5-40 carbon steel pipe
• EPDM sealing element

Product Highlights

Install this reducer coupling easily and fast without the need for threading, cutting oil, or heavy equipment. It minimizes system downtime by allowing wet connections and ensures secure connections during pressure testing.

Product Information

Standard Information

• Brand: Viega
• MPN: 25945

Technical Specifications

• Material: Carbon Steel
• Connection Type: Press
• Application: Hydronic Heating, Compressed Air, Fire Protection, Cooling Water
• Size: 1-1/4 x 3/4 inches
• Maximum Operating Pressure: 200 psi
• Maximum Operating Temperature: 250 degrees F
• Minimum Operating Temperature: 0 degrees F
• Finish/Coating: Zinc Nickel-Plated
• O-Ring Material: EPDM
• Weight: 0.734 lbs
• Length: 4.37 inches
• Width: 2.205 inches
• Height: 2.205 inches
