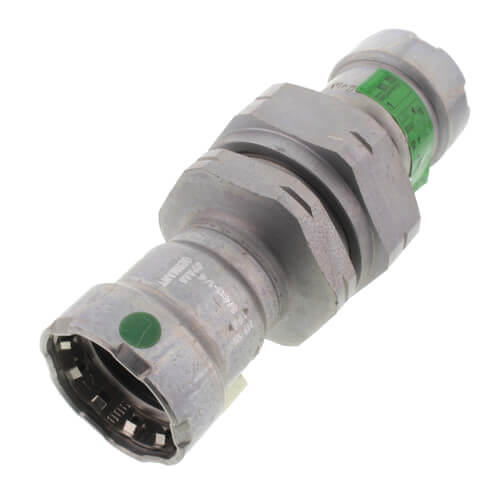

Viega 25720 MegaPress 1-1/2 in. Carbon Steel Union for Hydronic Applications

Product Description

The Viega 25720 MegaPress 1-1/2 in. Union is a reliable carbon steel press fitting designed for various applications. Suitable for chilled water, hydronic heating, compressed air, and fire sprinkler systems, this union offers versatility and durability. Viega's MegaPress system is built for use with Schedule 5 to 40 carbon steel pipes.

• Smart Connect technology
• Press connection with EPDM flat gasket
• Zinc nickel finish for corrosion resistance

Product Highlights

This union fitting ensures strong, reliable connections in diverse systems, including hydronic heating and fire protection. The press-fit design simplifies installation and maintenance.

Product Information

Standard Information

• Brand: Viega
• Model Number: 25720
• Product Name: MegaPress 1-1/2 in. Carbon Steel Union

Technical Specifications

• Material: Carbon Steel
• Finish: Zinc Nickel
• Connection Type: Press x Press
• Size: 1-1/2 inches
• Pressure Rating: 200 PSI
• Maximum Temperature: 250 degrees Fahrenheit
• Minimum Temperature: 0 degrees Fahrenheit
• Application: Hydronic Heating, Compressed Air, Fire Protection, Cooling Water
• Feature: Smart Connect Technology
• Compliance Standards: ABS Type Approval, CRN 0A14541.5 A/B, FM Class 1920, IAPMO, IAPMO PS 117, ICC, ICC-ES PMG-1124, NFPA 13, NFPA 13D, NFPA 13R, TSSA/ASME B31.1, TSSA/ASME B31.3, TSSA/ASME B31.9, UL, ULC/ORD 213
• UPC: 691514257204
• Country of Origin: Germany
