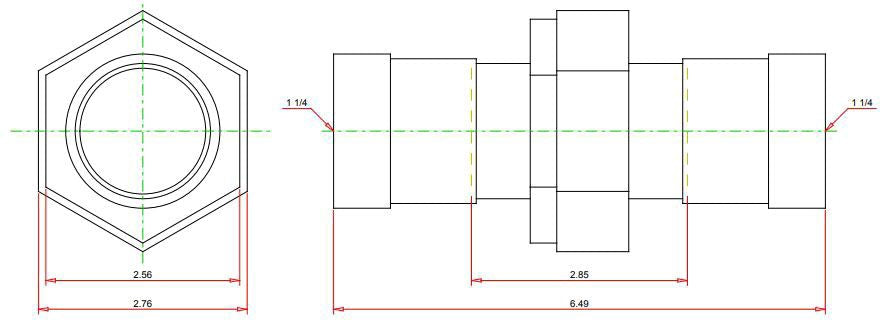

Viega 25716 MegaPressG 1-1/4 inch Union Press x Press Carbon Steel

Product Description

The Viega MegaPressG 25716 is a robust union fitting designed for durable, secure connections in plumbing systems. Manufactured from zinc-nickel coated carbon steel, this product ensures reliability and corrosion resistance.

• Optimal for use in systems transporting natural gas, fuel oil, and compressed air.
• Press x Press connection type simplifies installation, eliminating the need for threading or welding.
• Equipped with an HNBR sealing element to withstand temperatures from -40 to 180 degrees Fahrenheit.

Product Highlights

The Viega MegaPressG 25716 features revolutionary Smart Connect technology, which allows a visible leak if the fitting is not perfectly pressed, ensuring maximum safety and ease of use. The union is compliant with major standards including ANSI LC4/CSA 6.32, IAPMOLC4, and more, suitable for industrial applications.

Product Information

Standard Information

• Material: Carbon Steel
• Finish: Zinc Nickel Plated

Technical Specifications

• Connection Type: Press x Press
• Size: 1-1/4 inch x 1-1/4 inch
• Pressure Rating: 125 PSI
• Temperature Rating: -40 to 180 degrees Fahrenheit
• Compatibility: Natural/Industrial Gas, Fuel Oil, Compressed Air, Vacuum
• Standards: ANSI LC4/CSA 6.32, CSA B149.1, IAPMO LC4, ICC LC4
