Viega 25496 1-1/4 x 1-1/4 x 3/4 MegaPressG Tee

Product Description

The Viega 25496 is a MegaPressG tee fitting made of carbon steel, designed for use in various piping systems. It features a nominal size of one and one-quarter inches by one and one-quarter inches by three-quarters of an inch. This fitting connects MegaPressG fittings securely in less than seven seconds. The design includes an HNBR sealing element, which enables compatibility with natural gas and fuel oil applications.

• Press connection type, providing easy installation.
• Pressure rating of one hundred twenty-five PSI.
• Temperature range of negative forty to one hundred eighty degrees Fahrenheit.

Product Highlights

The Viega MegaPressG tee is suitable for heating fuel oil, natural gas, compressed air, and industrial gases. The patented Smart Connect technology helps identify unpressed connections during pressure testing.

Product Information

Standard Information

• Brand: Viega
• MPN: 25496
• Material: Carbon steel
• Finish: Zinc nickel plated

Technical Specifications

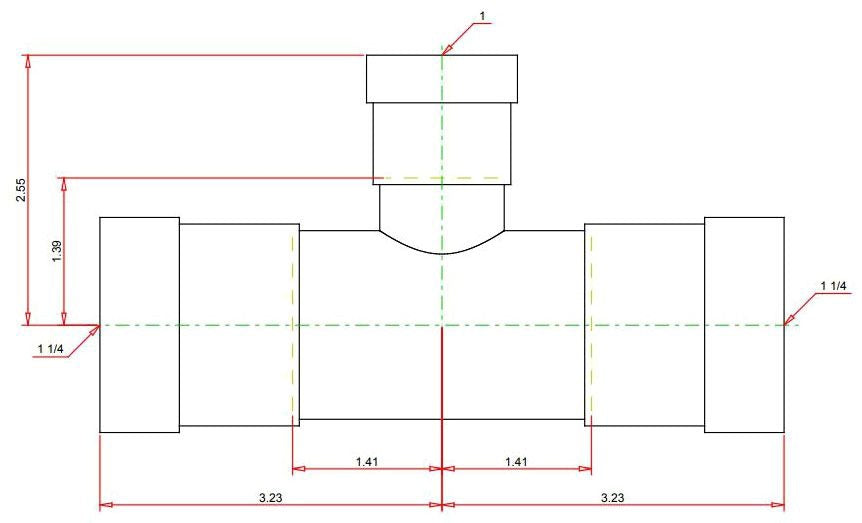

• Nominal Size: 1-1/4 inches x 1-1/4 inches x 3/4 inches
• End Connection: MegaPressG x MegaPressG x MegaPressG
• Pressure Rating: 125 PSI
• Temperature Rating: -40 to 180 degrees Fahrenheit
• Applicable Standards: ANSI LC4, IAPMO LC4, ICC LC4, NFPA 54/58
