Product Description

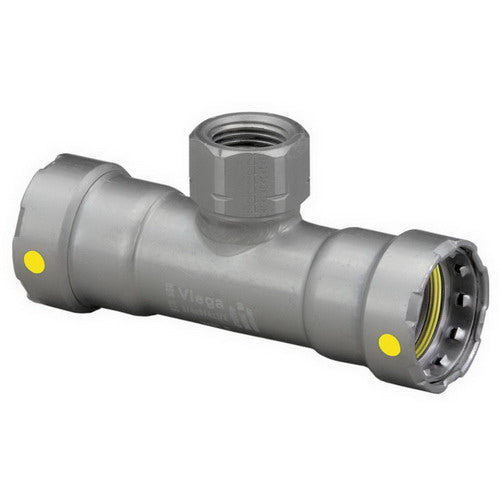

The Viega MegaPressG Tee, model 25446, is a high-performance carbon steel pipe fitting designed for secure and efficient gas, oil, and air installations. It features a reducing tee design with dimensions of 1-1/2 inch by 1-1/2 inch by 1 inch and offers a press x press x female threaded connection.
- Secures fittings in seconds with the patented Viega Smart Connect feature.
- Equipped with a HNBR sealing element ideal for natural gas and hydrocarbons.
- Zinc nickel plated for corrosion resistance, suitable for temperatures from -40 to 180 degrees Fahrenheit.
Product Highlights
This reducing tee is designed for use with Schedule 5 to Schedule 40 carbon steel pipes. Its robust construction ensures longevity and reliability in tough environments, making it an ideal choice for heating fuel oil, natural gas, compressed air, and industrial gas applications. The fitting meets a variety of standards including ANSI LC4/CSA 6.32, IAPMO LC4, and more.
Product Information
Standard Information
-
UNSPSC: 40183102
-

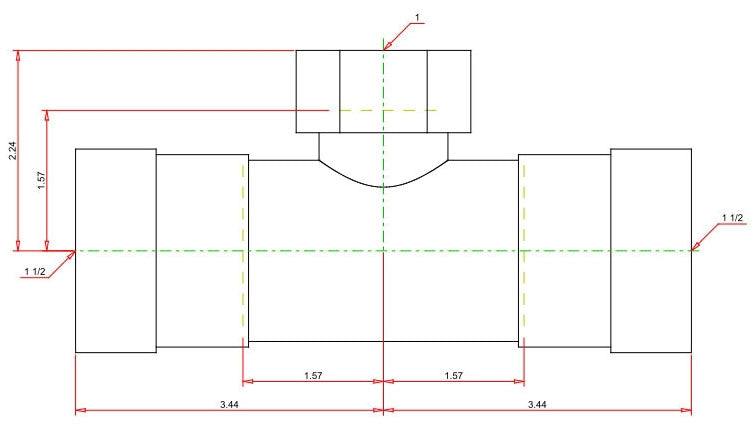

Dimensions: 1-1/2 inch x 1-1/2 inch x 1 inch
Technical Specifications
-
Material: Carbon Steel
-
Pressure Rating: 125 PSI
-
Temperature Range: -40 to 180 degrees Fahrenheit
-
Connection Type: MegaPressG x MegaPressG x Female Threaded
-
Applicable Standards: ANSI LC4/CSA 6.32, IAPMO LC4, ICC LC4, IFGC, NFPA 54/58, CRN, ABS, GL, LR, ASME B31, CSA B149.1
