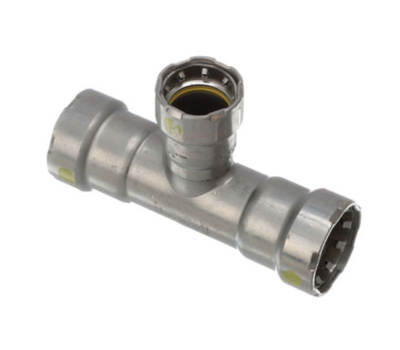

Viega 25341 MegaPressG 1 inch x 1 inch x 3/4 inch Press Carbon Steel Reducing Tee

Product Description

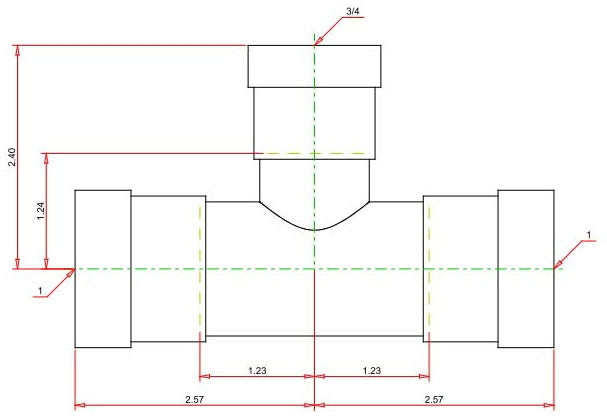

The Viega MegaPressG 25341 is a reducing tee designed for various plumbing and industrial applications. This product, crafted from zinc-nickel coated carbon steel, ensures durability and corrosion resistance. It features a connection size of 1 inch by 1 inch by 3/4 inch and is suitable for use with Schedule 5 to Schedule 40 carbon steel pipes. The Viega MegaPressG system offers secure and quick connections without the need for threading or welding, significantly reducing installation time.

• Press-fit connection type for easy installation
• HNBR sealing element enhances compatibility with natural gas and other hydrocarbons
• Pressure rating of 125 PSI and temperature range from -40 to 180 degrees Fahrenheit

Product Highlights

Designed specifically for heating fuel oil, natural gas, compressed air, lubricants/oils, industrial gas, and vacuum applications, this reducing tee complies with a variety of standards including ANSI LC4/CSA 6.32 and ASME B31. The included HNBR sealing element provides additional safety and functionality, making it ideal for both new installations and retrofit projects.

Technical Specifications

• Material: Zinc-Nickel Coated Carbon Steel
• Connection Type: MegaPressG x MegaPressG x MegaPressG
• Pressure Rating: 125 PSI
• Temperature Rating: -40 to 180 degrees Fahrenheit
• Standards: ANSI LC4/CSA 6.32, IAPMO LC4, ICC LC4, NFPA 54/58
