Product Description

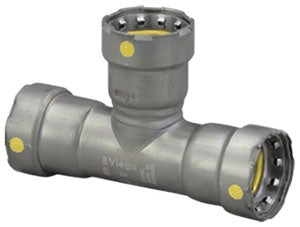

The Viega MegaPressG 25336 is a reducing tee designed for efficient and secure connections in heating, oil, natural gas, and compressed air applications. This carbon steel tee is notable for its robust zinc-nickel coating and HNBR sealing element, making it an excellent choice for both residential and commercial plumbing systems.
- Quick and easy press-fit connections
- High resistance to corrosion with zinc-nickel finish
- Compatible with carbon steel pipes from Schedule 5 to Schedule 40
Product Highlights
This tee is crafted for durability and ease of use, facilitating secure installations without the need for threading, soldering, or sealing compounds. It is equipped with Viega's patented Smart Connect feature, which helps installers easily identify unpressed connections.
Product Information
Standard Information
-
Material: Carbon steel
-
Pressure Rating: 125 PSI
-
Temperature Range: -40 to 180 degrees Fahrenheit
Technical Specifications
-
End Connections: MegaPressG x MegaPressG x MegaPressG
-

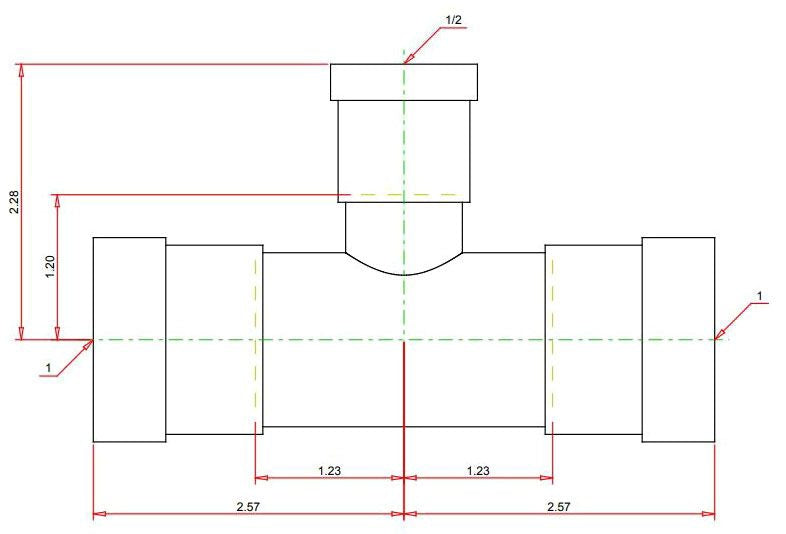

Nominal Size: 1 inch x 1 inch x 1/2 inch
-
Standards: ASME B31, CSA B149.1, ANSI LC4/CSA 6.32
-
Applications: Suitable for use with natural gas, heating oil, compressed air, and non-potable water
-
Sealing Element: HNBR
