Viega 25366 MegaPressG Tee 1-1/2 Inch x 1-1/2 Inch x 3/4 Inch Reducing Carbon Steel

Product Description

The Viega MegaPressG Tee 25366 is a robust pipe fitting crafted from carbon steel, designed for reducing pipe sizes from 1-1/2 inches to 3/4 inch. This fitting features the patented Smart Connect technology, allowing for secure, flameless connections that enhance job safety and efficiency.

• Quick and reliable installation without the need for threading or welding.
• HNBR sealing element suitable for applications involving natural gas and other hydrocarbons.
• Designed for use with Schedule 5 to Schedule 40 carbon steel pipes.

Product Highlights

This tee is perfect for systems that transport water, natural gas, oil, or air. It operates under a pressure rating of 125 PSI and is suited for temperatures ranging from -40 to 180 degrees Fahrenheit.

Product Information

Standard Information

• Pressure Resistance: 125 PSI
• Temperature Suitability: -40 to 180 degrees Fahrenheit

Technical Specifications

• Material: Carbon Steel
• Connection: Press x Press x Press

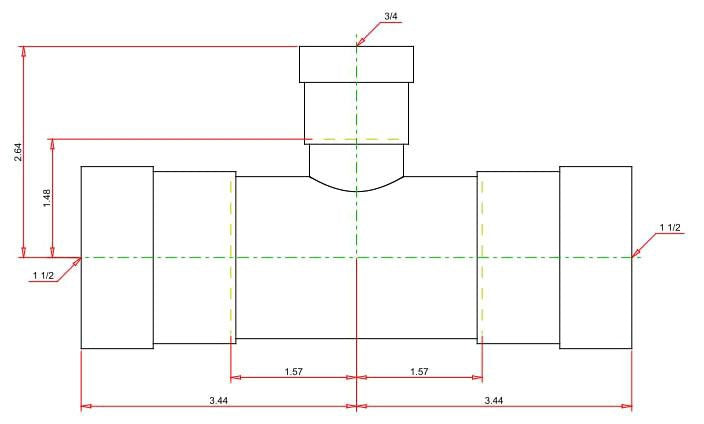

• Size: 1-1/2 inches x 1-1/2 inches x 3/4 inch
• Coating: Zinc Nickel Plated
• Standards: ANSI LC4/CSA 6.32, IAPMO LC4, ICC LC4, IFGC, NFPA 54/58, CRN, ABS, GL, LR, ASME B31, CSA B149.1
