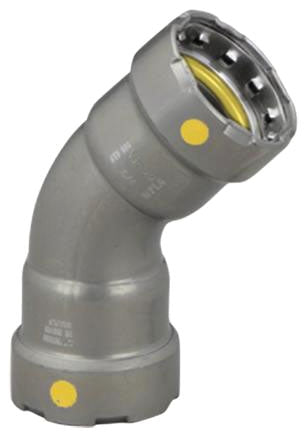

Viega 25241 MegaPressG 45 Degree Elbow Carbon Steel 1 Inch Press Connection

Product Description

The Viega MegaPressG 45 Degree Elbow, MPN 25241, made of carbon steel, is designed to make secure, reliable connections in piping systems. Featuring a press-connect end connection, it eliminates the need for threading, soldering or flanging, ensuring quick and efficient installation.

• Quick and secure press-connect end connection suitable for piping systems
• Robust carbon steel construction with a zinc-nickel finish for corrosion resistance
• HNBR sealing element for gas and other hydrocarbon applications

Product Highlights

Optimized for use with natural gas, liquid propane gas, and fuel oil among other applications, the Viega MegaPressG Elbow works flawlessly from -40 to 180 Deg F, ensuring high performance under various temperature settings. Ideal for both new installations and retrofit projects in residential, commercial, and industrial settings.

Technical Specifications

• Material: Carbon Steel
• Finish: Zinc-Nickel Plated
• Size A and B: 1 Inch
• Pressure Rating: 200 PSI
• Temperature Rating: -40 to 180 Deg F
• Applicable Standards: ABS, CSA ANSI LC4/CSA 6.32, IAPMO, CRN, ICC-ES PMG-1036, NFPA
• Connection Type: Press x Press
