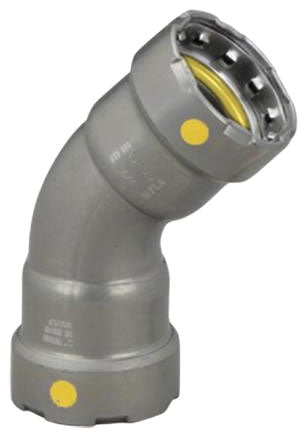

Viega MegaPressG 25236 Carbon Steel 45-Degree Elbow

Product Description

The Viega MegaPressG 25236 is a 45-degree elbow fitting crafted from zinc-nickel coated carbon steel for reliable press connections across a range of applications. This essential component is designed for use with Schedule 5 to 40 carbon steel pipes, facilitating secure, leak-proof connections without the need for threading or welding.

• Zinc-nickel coating enhances corrosion resistance.
• Press-fit technology allows for quick and easy installation.
• Compatible with gas, oil, and hydronic heating systems.

Product Highlights

Viega MegaPressG fittings feature a unique HNBR sealing element which is specifically engineered for use with natural gas and other hydrocarbons, ensuring a secure and durable connection. The smart connect feature provides a clear indication of un-pressed connections during pressure testing, simplifying the installation process and enhancing safety.

Product Information

Standard Information

• Material: Carbon Steel
• Size: 3/4 inch x 3/4 inch
• Connection Type: Press x Press

Technical Specifications

• Pressure Rating: 125 PSI for fuel gas, 200 PSI general
• Temperature Range: -40 to 180 Degrees Fahrenheit
• Applicable Standards: ABS, CSA ANSI LC4/CSA 6.32, CSA B149.1, IAPMO, ICC-ES PMG-1036, NFPA 54/58
• Included Components: HNBR Sealing Element
• Weight: 0.41 pounds

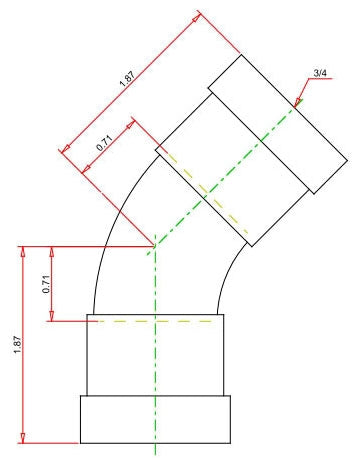

• Dimensions: 3.6 x 1.8 x 1.2 inches
