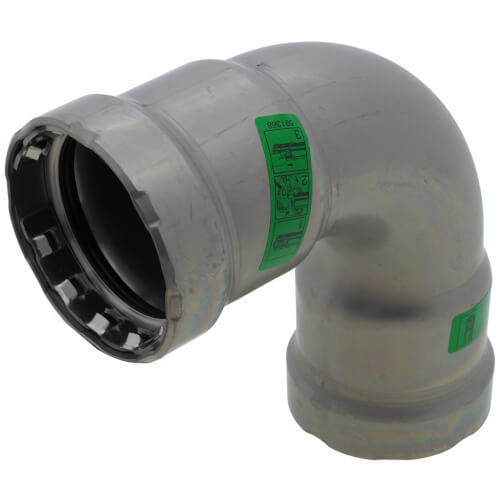

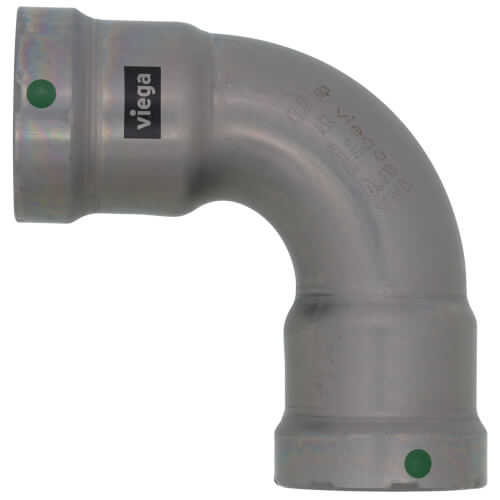

Viega 25220 MegaPress 1-1/2 Inch Carbon Steel 90-Degree Elbow

Product Description

The Viega 25220 MegaPress 90-Degree Elbow is crafted from durable carbon steel, offering a reliable solution for piping systems in non-potable water applications. This fitting is designed for pipes measuring 1-1/2 inches and is equipped with EPDM seals for enhanced performance.

• Compatible with ASTM A53, A106, A135, and A795 Schedule 5 to 40 carbon steel pipes.
• Zinc nickel-plated finish for corrosion resistance.
• Pressure-fit connections to ensure secure and leak-free installations.

Product Highlights

This 90-degree elbow is integral for creating angular connections in piping systems, facilitating directional change in limited spaces without disrupting the flow. Appropriate for both commercial and residential installations.

Product Information

Technical Specifications

• Material: Carbon Steel
• Connection Type: Press x Press
• Pressure Rating: Up to 200 PSI
• Temperature Range: 0 to 250 Degrees Fahrenheit
• Compliance: ABS, CRN, FM Class 1920, ICC-ES PMG-1124
• Finish: Zinc Nickel-Plated
• Sealing Element: EPDM
• Size: 1-1/2 Inch
