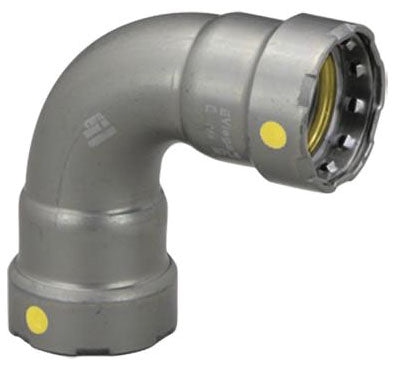

Viega 25206 MegaPressG 90 Degree Elbow 3/4 Inch Press x Press Carbon Steel

Product Description

The Viega MegaPressG 25206 is a 90-degree elbow made from zinc-nickel coated carbon steel, designed for high-efficiency and secure pipe connections. Ideal for professionals handling natural gas, compressed air, and fuel oil systems.

• Optimized for use with Schedule 5 to Schedule 40 carbon steel pipes.
• Features Viega's patented Smart Connect technology for guaranteed secure connections.
• Capable of withstanding pressures up to 200 PSI and temperatures from -40 to 180 degrees Fahrenheit.

Product Highlights

This elbow fitting is crafted from lead-free zinc-nickel coated carbon steel, ensuring durability and corrosion resistance. The press-fit connection type simplifies installation, eliminating the need for threading or welding.

Technical Specifications

• Material: Carbon Steel, Zinc-Nickel Coated
• Size: 3/4 inch x 3/4 inch
• Connection Type: Press x Press
• Pressure Rating: 200 PSI
• Temperature Range: -40 to 180 Degrees Fahrenheit
• Compliance: ABS, CSA ANSI LC4/CSA 6.32, IAPMO, ICC-ES PMG-1036
