Product Description

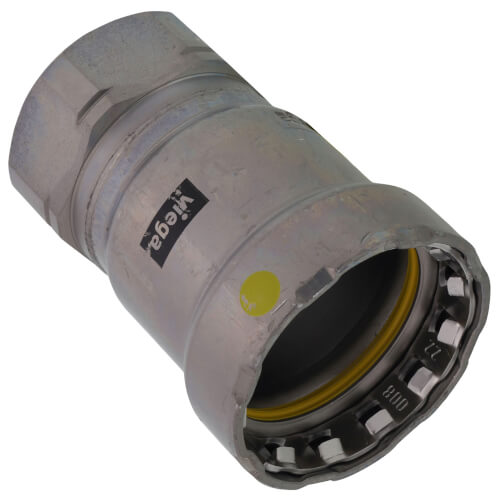

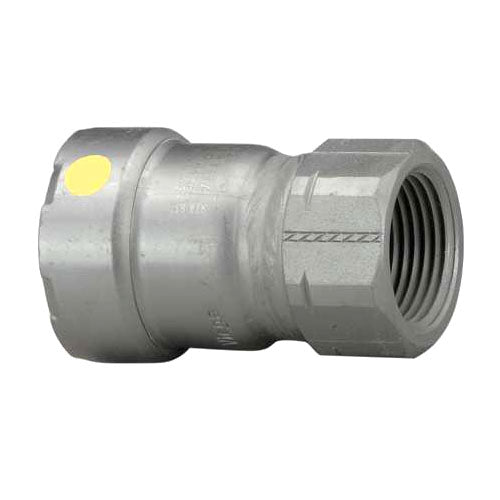

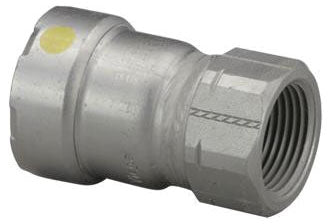

The Viega MegaPressG 25146 Adapter is a reliable press-to-thread fitting for various gas pipe applications. This adapter has dimensions of 1-1/4 inches by 1-1/4 inches and features a carbon steel construction with a zinc nickel plating. It is designed for use with natural gas, liquid propane gas, fuel oil, compressed air, and industrial gases and has an operating pressure rating of up to 200 PSI.
- Press x Female Threaded connection
- For use with Schedule 5 to Schedule 40 carbon steel pipe
- HNBR sealing element included
Product Highlights
This Viega MegaPressG Adapter offers easy and secure press connections without the need for threading, cutting oil, or heavy equipment. The patented Viega Smart Connect technology ensures a secure connection within seconds, simplifying the installation process.
Product Information
Standard Information
-
Brand: Viega
-
Model: 25146
-
Product Type: Adapter
-
Size: 1-1/4 inches by 1-1/4 inches
-
Connection Type: Press x Female Threaded
Technical Specifications
-
Material: Carbon Steel
-
Finish: Zinc Nickel Plated
-
Pressure Rating: 125 PSI (fuel gas), 200 PSI (operating)
-
Temperature Rating: -40 to 180 degrees Fahrenheit
-
Standards: ABS, CSA ANSI LC4/CSA 6.32, IAPMO, CRN 0A14541.5 A/B, ICC-ES PMG-1036, IFGC, NFPA 54/58
-
Included: HNBR Sealing Element
-
Application: Natural Gas, Liquid Propane Gas, Fuel Oil, Compressed Air, Industrial Gas
-
Weight: 0.662 pounds
-

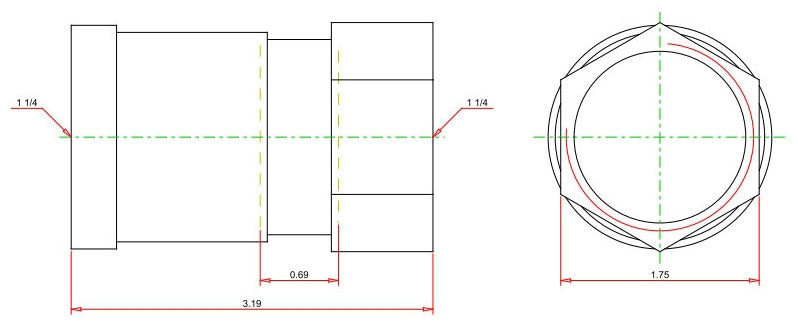

Dimensions: Length: 3.19 inches, Width: 2.205 inches, Height: 2.205 inches
