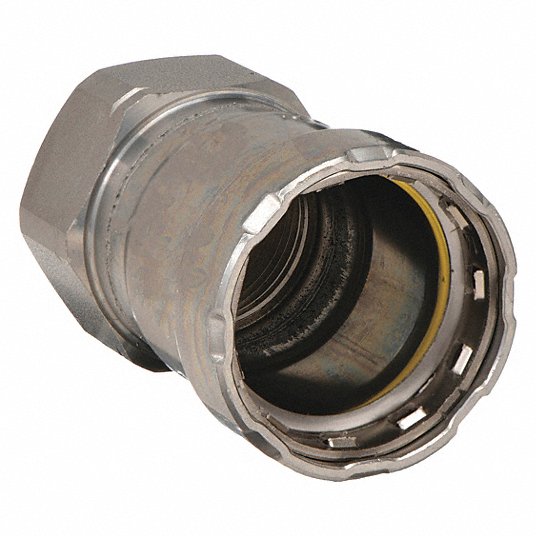

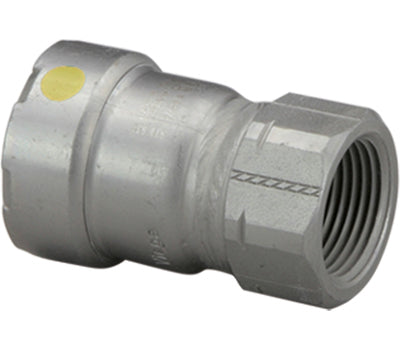

Viega 25146 MegaPressG® 6612 Series Tube Adapter 1-1/4 in Press x 1-1/4 in FNPT

Product Description

The VIEGA 25146 MegaPressG® 6612 Series Tube Adapter is designed for use with Schedule 5 to Schedule 40 black iron pipe. This adapter is suitable for natural gas, liquid propane (LP) gas, diesel fuel, compressed air, and vacuum applications. It features a press connection for secure installation and a female connection for versatile use.

• Carbon steel construction
• Suitable for Schedule 5 to Schedule 40 black iron pipe
• Compatible with natural gas, liquid propane (LP) gas, diesel fuel, compressed air, and vacuum applications

Product Highlights

The VIEGA MegaPressG adapter provides secure connections and is ideal for industrial, commercial, and residential applications.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 25146
• Country of Origin: Import

Technical Specifications

• Brand: Viega
• MPN: 25146
• Series: 6612 Series
• Fitting/Connector Type: Adapter
• Material: Carbon Steel
• Application: Natural gas, liquid propae (LP) gas, diesel fuel, compressed air, and vacuum applications
• Size: 1-1/4 in
• Connection Type: Press|FNPT
• End Style: Press x FNPT
• Nominal Size: 1-1/4 In
• Temperature Rating: -40 to 180 deg F
• Connection Size 1: 1-1/4 in
• Connection Size 2: 1-1/4 in
• Connection Type 1: Press
• Connection Type 2: FNPT
• Finish: Zinc Nickel-Coated
• For Use With: SCH 5 to 40 Carbon Steel Pipes
• Material Construction: Carbon Steel
• Pressure Rating: 125 to 200 psi
• Fitting Size: 1-1/4 in Pipe x 1-1/4 in Pipe
• Fitting Shape: Straight
• Fitting Material: Zinc Nickel-Plated Steel
• O-Ring Material: HNBR
• Temperature Range: 40 °F to 180 °F
• Fitting Side A Connection Type: Press-fit
• Fitting Side A Pipe Size: 1-1/4 in
• Fitting Side B Connection Type: FNPT
• Fitting Side B Pipe Size: 1-1/4 in
• Overall Length: 3.19 in
• Resistance Properties: Chemical-Resistant; Heat-Resistant; Oil-Resistant
• For Media Type: Compressed Air; Fuels; Gases
• Standards: ABS; ANSI LC4/CSA 6.32; CRN 0A14541.5 A/B; CSA ANSI LC4/CSA 6.32; CSA B149.1; IAPMO; IAPMO ANSI LC4/CSA 6.32; ICC; ICC-ES PMG-1036; IFGC; NFPA 54; NFPA 58
• Maximum Operating Pressure: 125 psi
