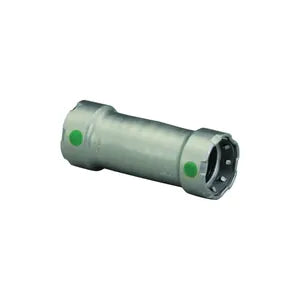

VIEGA 25095 MegaPress Extended Coupling 2 in

Product Description

The VIEGA MegaPress 25095 is a reliable extended coupling suitable for Schedule 5 to Schedule 40 carbon steel piping systems. This fitting features press end connections and is crafted from durable carbon steel with an EPDM seal, making it versatile for various applications.

• Effective for chilled water, hydronic heating, and compressed air systems.
• Eliminates the need for threading, ensuring easier installation.
• Rated for maximum pressure up to 200 psi.

Product Highlights

This coupling provides secure fittings for a variety of piping needs.

Product Information

Standard Information

• Brand: VIEGA
• MPN: 25095

Technical Specifications

• Fitting/Connector Type: Coupling
• Nominal Size: 2 inches
• End Style: Press
• Material: Carbon Steel
• Seal Material: EPDM
• Length: 5.63 inches
• Weight: 1.693 lbs
• Pressure Rating: 200 psi
• Temperature Rating: -4 to 250 degrees F
• Applications: Includes fire sprinkler, hydronic, low pressure steam, fuel oil, industrial gas, compressed air, vacuum
• Country of Origin: DE
• Standards and Approvals: ASME B31 | ABS Listed | CAL Fire Listed | CRN #OA14541.6 | FM Class 1920 | ICC LC1002 | International Plumbing Code | UL 213 | Uniform Plumbing Code
• Additional Information: Includes EPDM sealing element
• End Connection: MegaPress x MegaPress
• Finish: Zinc/Nickel Coated
• Gasket Material: EPDM
