Product Description

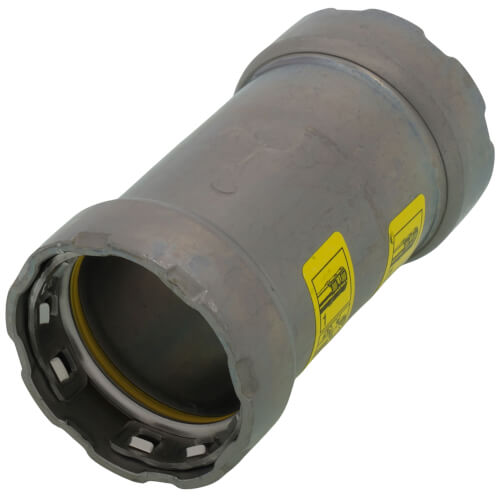

The Viega 25041 MegaPressG Coupling without Stop is designed for efficient pipe connections. This coupling features a press x press connection type and is made from carbon steel with a zinc nickel plated finish, ensuring durability and resistance against corrosion. Suitable for use with natural gas, liquid propane gas, fuel oil, compressed air, industrial gas, vacuum, and heating oil applications, this coupling complies with numerous industry standards for safety and performance.
- Patented Viega Smart Connect technology
- For use with schedule 5 to schedule 40 carbon steel pipe
- Press connection type
Product Highlights
Efficient pipe connections with Smart Connect technology. Suitable for various gas and oil applications. Made from durable zinc nickel plated carbon steel.
Product Information
Standard Information
Technical Specifications
-
Thread Size: 1 inch
-
Connector Type: Coupling
-
Exterior Finish: Brass
-
Measurement System: Inch
-
Sound Level: 1 dB
-
Gasket Supplied: Yes
-
Gasket Details: HNBR Sealing Element
-
Pressure Rating: 125 PSI (Fuel Gas), 200 PSI
-
Temperature Rating: -40 to 180 Deg F
-
Applicable Standard: ABS, CSA ANSI LC4/CSA 6.32, CSA B149.1, IAPMO, ANSI LC4/CSA 6.32, CRN 0A14541.5 A/B, ICC-ES PMG-1036, IFGC, NFPA 54/58
