Product Description

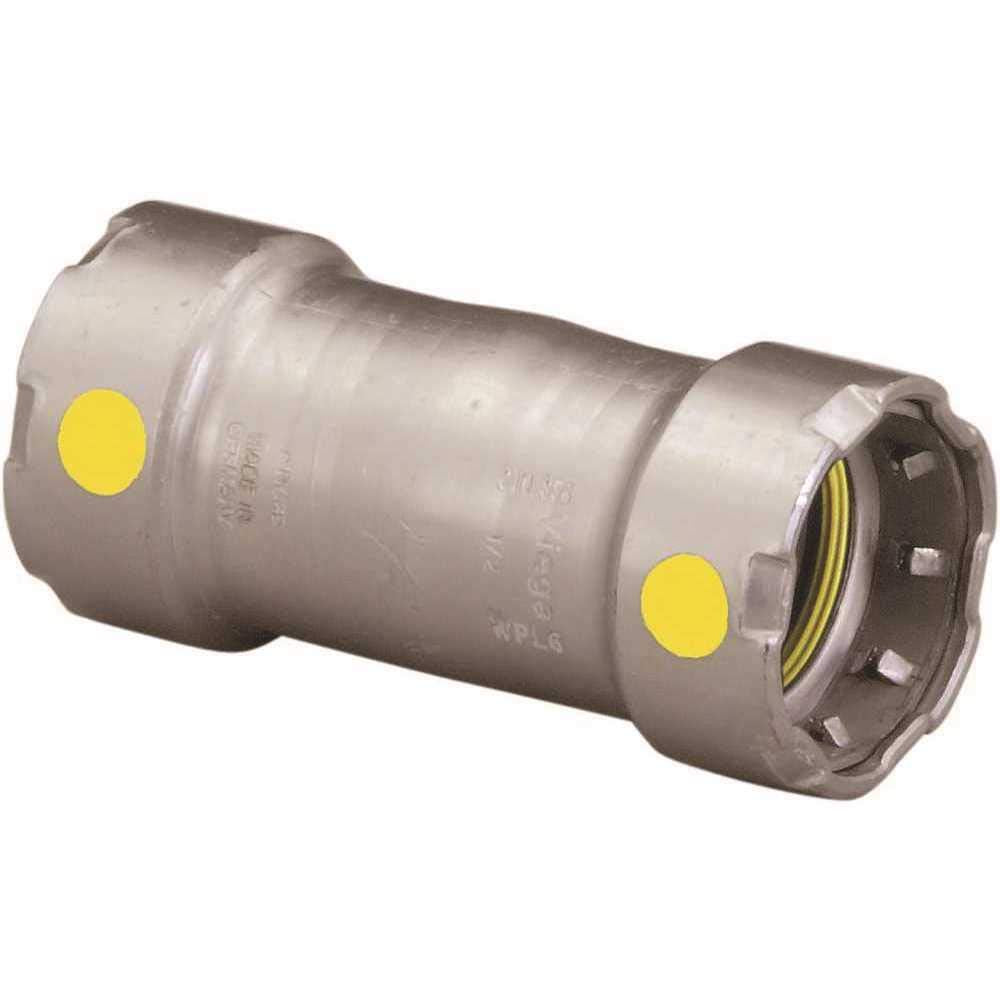

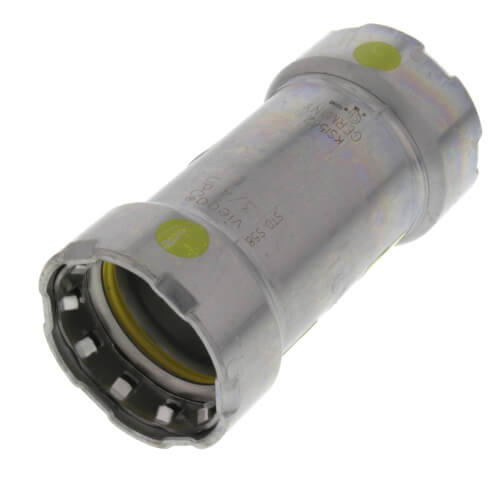

The Viega 25036 coupling is a 3/4 inch press x press fitting designed for use with carbon steel piping systems. Made of carbon steel and coated with zinc nickel for enhanced durability, this coupling is ideal for various applications including natural gas, liquid propane gas, and heating oil. With a maximum operating pressure of 200 PSI and a temperature range from -40 to 180 degrees Fahrenheit, it ensures reliable performance in demanding environments.
- Patented Viega Smart Connect for easy and secure connections
- Suitable for schedule 5 to schedule 40 carbon steel pipe
- Carbon steel with zinc-nickel plating for corrosion resistance
Product Highlights
The Viega 25036 coupling offers a secure press connection without the need for threading, cutting oil, or heavy equipment. It includes HNBR sealing elements and is certified by multiple standards making it a robust solution for industrial gas, fuel oil, and vacuum systems.
Product Information
Standard Information
Technical Specifications
-
Material: Carbon Steel
-
Finish: Zinc Nickel Plated
-
End Connection: Press x Press
-

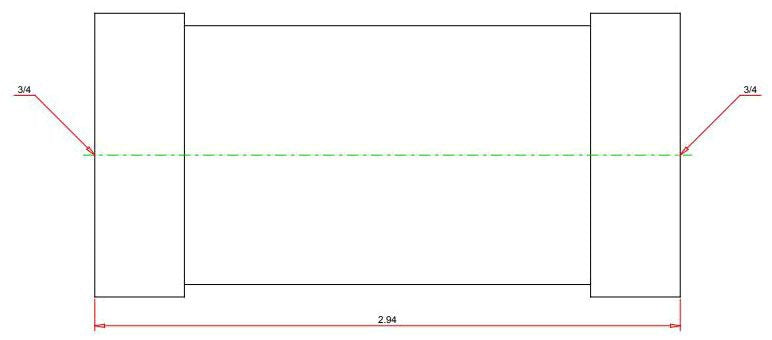

Size: 3/4 inch x 3/4 inch
-
Pressure Rating: 125 PSI (Fuel Gas), 200 PSI
-
Temperature Rating: -40 to 180 Deg F
-
Gasket Details: HNBR Sealing Element
-
Applicable Standards: ABS, CSA ANSI LC4/CSA 6.32, CSA B149.1, IAPMO, ANSI LC4/CSA 6.32, CRN 0A14541.5 A/B, ICC-ES PMG-1036, IFGC, NFPA 54/58
