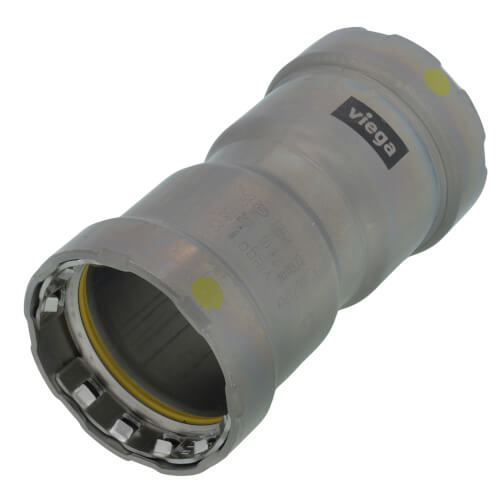

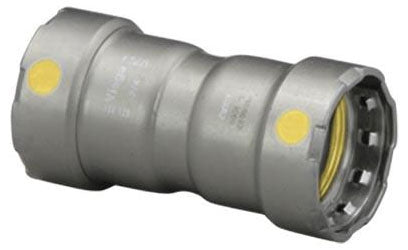

Viega 25021 MegaPressG Carbon Steel Coupling with Stop Press x Press Connection 1-1/2 Inch

Product Description

The Viega 25021 MegaPressG Carbon Steel Coupling provides a robust connection solution for pipe fitting. Known for its high-quality sealing capability, this coupling uses press x press connections ideal for securing pipes in a gas distribution system.

• Press technology allows for rapid connections.
• HNBR sealing element ensures a secure seal suitable for gas and oil.
• Designed for schedule 5 to schedule 40 carbon steel pipes.

Product Highlights

This coupling is crafted from carbon steel with a zinc nickel finish, ensuring durability and corrosion resistance. The designated use includes applications such as natural gas, liquid propane gas, and compressed air among others. It easily fits 1-1/2 inch x 1-1/2 inch pipes and operates at pressures up to 200 psi.

Product Information

Standard Information

• Pressure Rating: 125 PSI for fuel gas; 200 PSI for general use
• Temperature Range: -40 to 180 degrees Fahrenheit

Technical Specifications

• Material: Carbon Steel
• Connection Type: Press x Press
• Size: 1-1/2 inch x 1-1/2 inch
• Applicable Standards: ABS, CSA ANSI LC4/CSA 6.32, CSA B149.1, IAPMO, ANSI LC4/CSA 6.32, CRN 0A14541.5 A/B, ICC-ES PMG-1036, IFGC, NFPA 54/58
• Finish: Zinc Nickel Plated
