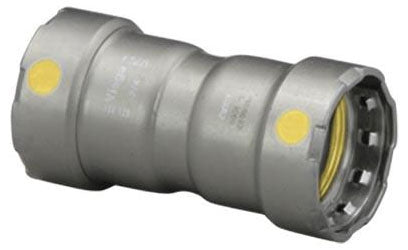

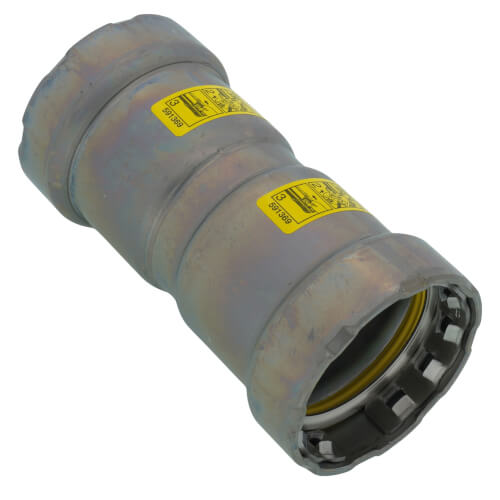

Viega 25016 MegaPressG 1-1/4 Inch Carbon Steel Coupling with Stop

Product Description

The Viega MegaPressG 25016 is a carbon steel coupling designed for efficient, secure pipe connections. This coupling features the MegaPressG system, allowing for quick connections without the need for threading, welding, or soldering.

• Secure connection in less than seven seconds with Smart Connect technology.
• Compatible with Schedule 5 to Schedule 40 carbon steel pipes.
• HBNR sealing element suitable for natural gas and other hydrocarbons.

Product Highlights

This coupling offers a temperature range from minus 40 to 180 degrees Fahrenheit and a pressure rating of up to 200 PSI, making it suitable for a variety of industrial, commercial, and residential applications.

Product Information

Standard Information

• Size: 1-1/4 inch
• Connection Type: Press x Press

Technical Specifications

• Material: Carbon Steel, Zinc-Nickel Plated
• Pressure Rating: 125 PSI (Fuel Gas), 200 PSI
• Temperature Rating: -40 to 180 Deg F
• Gasket Details: HNBR Sealing Element
• Applicable Standards: ABS, CSA ANSI LC4/CSA 6.32, CSA B149.1, IAPMO, ANSI LC4/CSA 6.32, CRN 0A14541.5 A/B, ICC-ES PMG-1036, IFGC, NFPA 54/58
