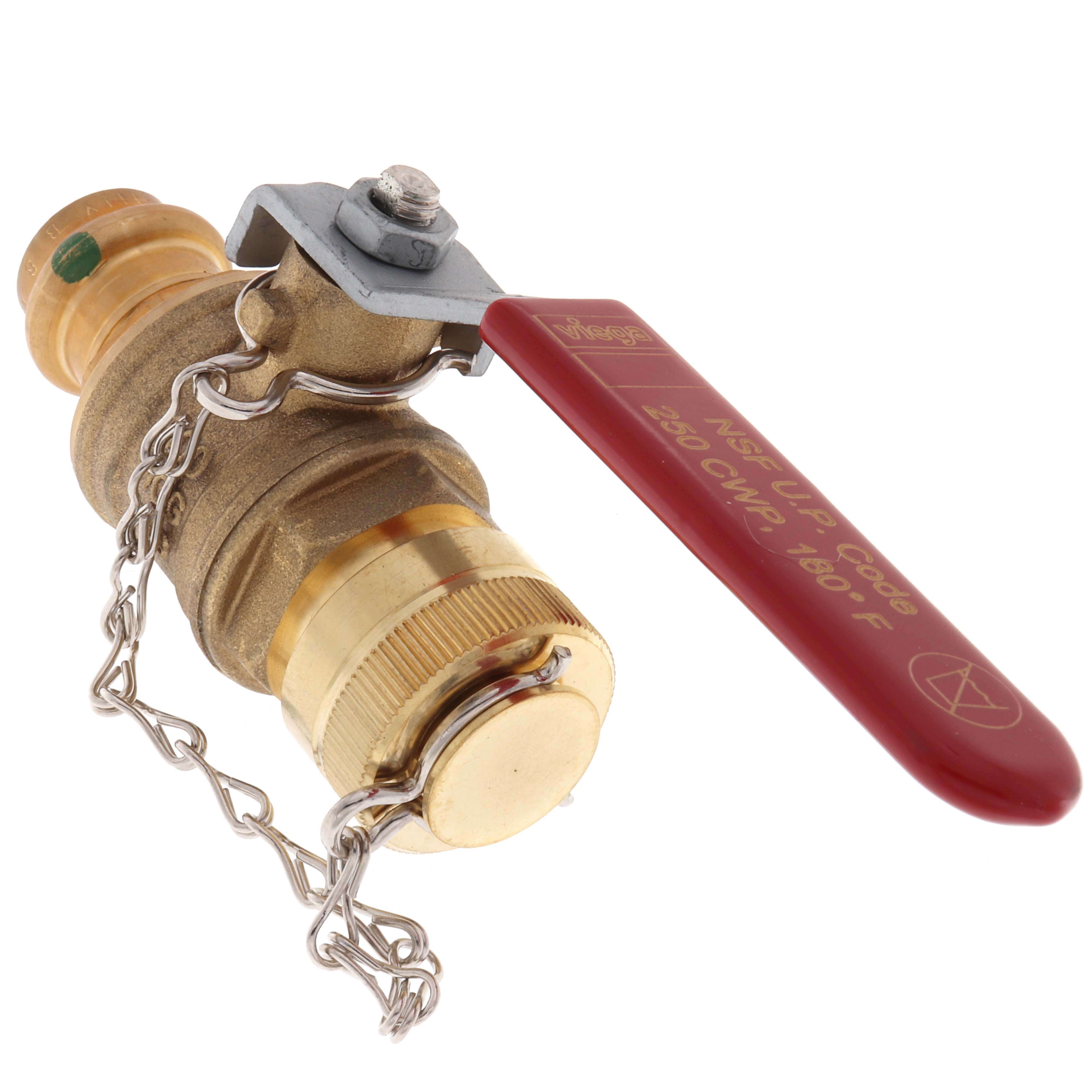

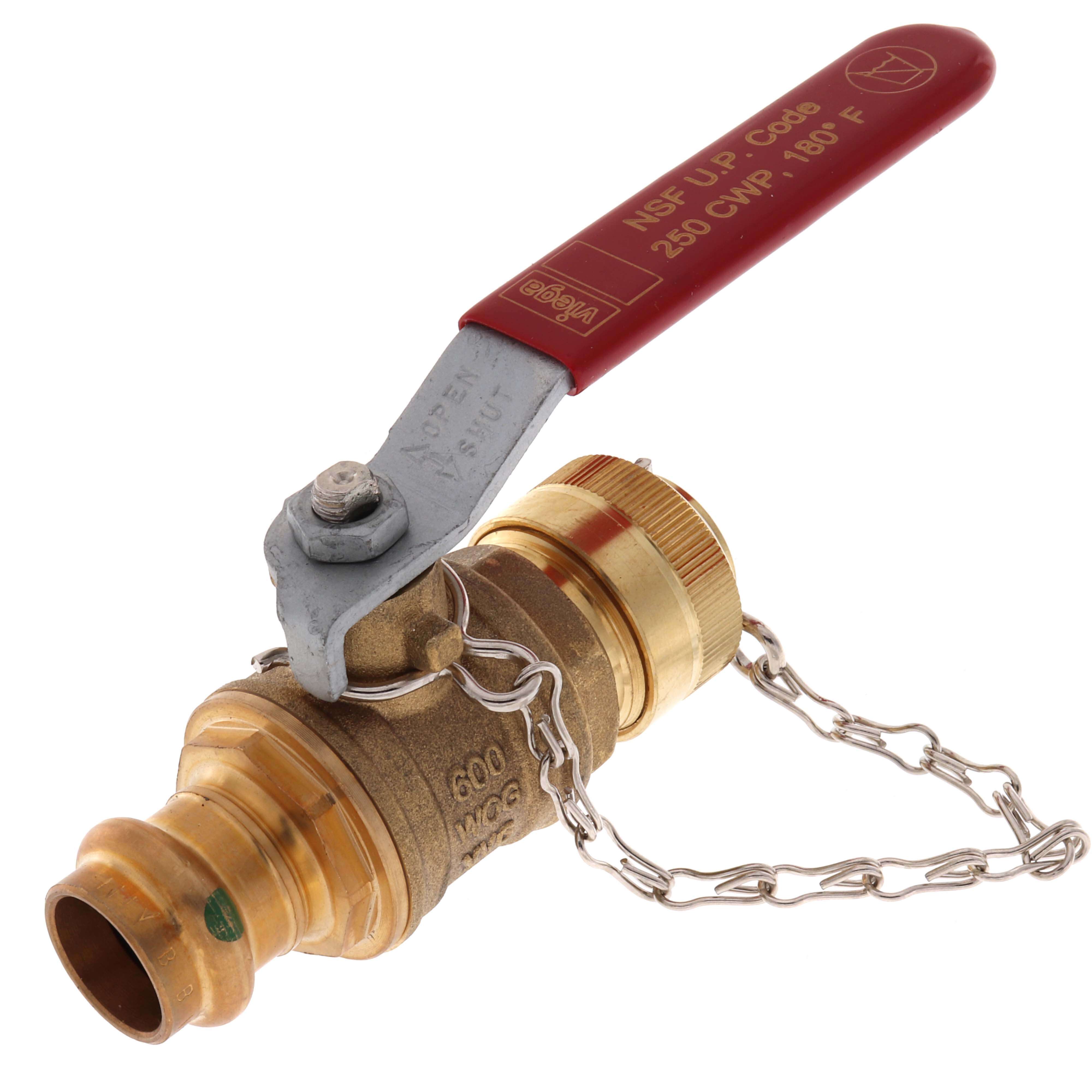

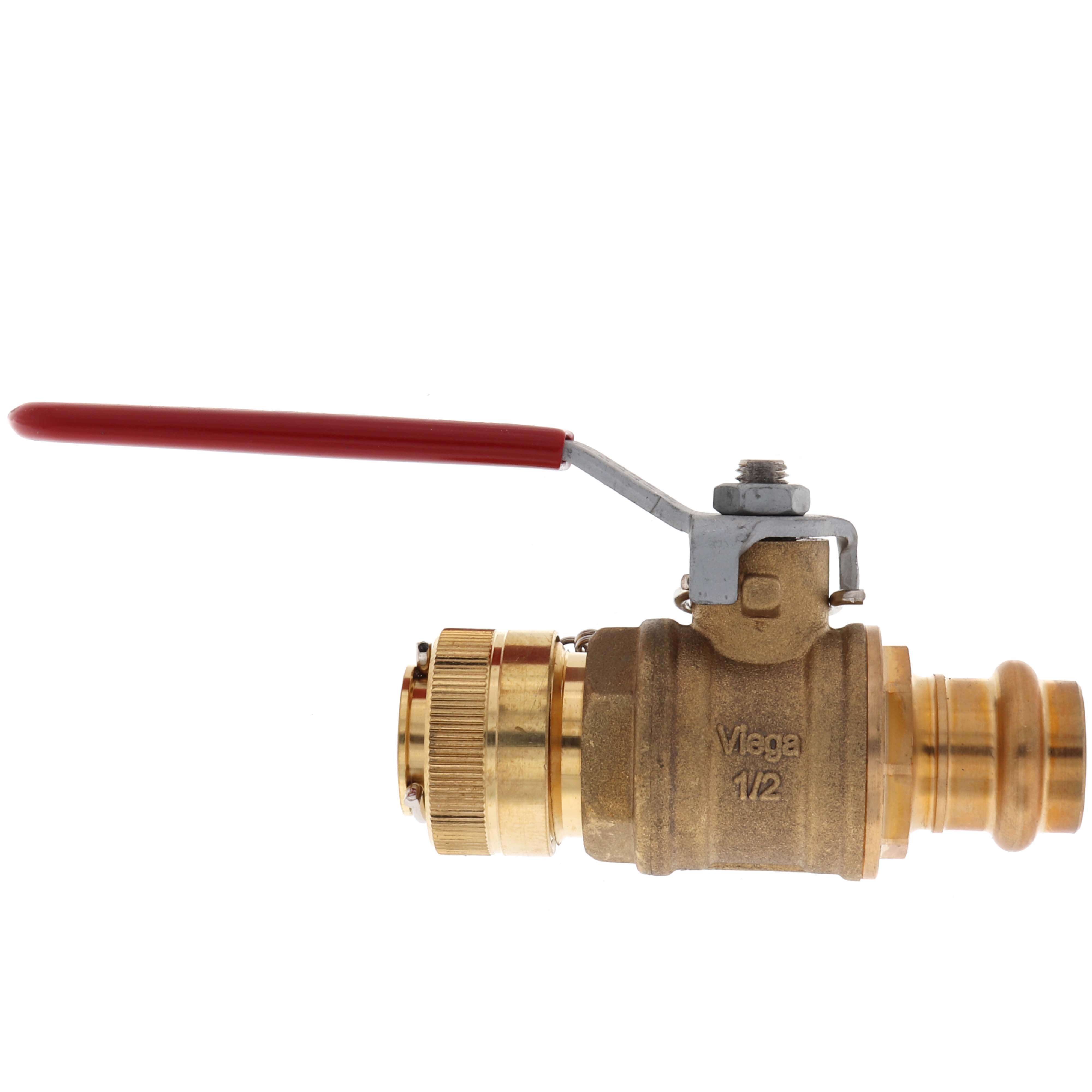

Viega 24090 ProPress Ball Valve 1/2 x 3/4 in Press x GHT

Product Description

The VIEGA 24090 ProPress Ball Valve is designed for hydronic and non-potable applications. This full port ball valve features EPDM sealing elements and Viega's Smart Connect feature for easy identification of unpressed connections during pressure testing. It installs up to 60% faster than soldering.

• Features Smart Connect technology
• Full port
• Suitable for non-potable applications

Product Highlights

The VIEGA 24090 ProPress ball valve offers reliable performance and easy installation for various applications.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 24090
• Country of Origin: Unknown

Technical Specifications

• MPN: 24090
• Brand: VIEGA
• Nominal Size: 1/2 x 3/4 in
• Connection Type: Press x GHT
• Port Type: Full
• Media: Water
• Inlet to Outlet Length: 2.88 in
• Top to Inlet Center: 1.67 in
• Operator Type: Locking Handle
• Body Material: Bronze/Brass
• Seal Material: EPDM
• Softgoods Material: EPDM Seal/RPTFE Seat
• Trim Material: Brass
• Domestic/Import: Domestic
• Pressure Rating: 250 psi CWP
• Temperature Rating: 250 deg F
• Ball Material: Chrome Plated Brass
• End Style: Press x Hose
• Inlet Diameter (In.): 1/2
• Size: 1/2in x 3/4in
