Viega 24005 ProPress Ball Valve, 3/4 in, Press

Product Description

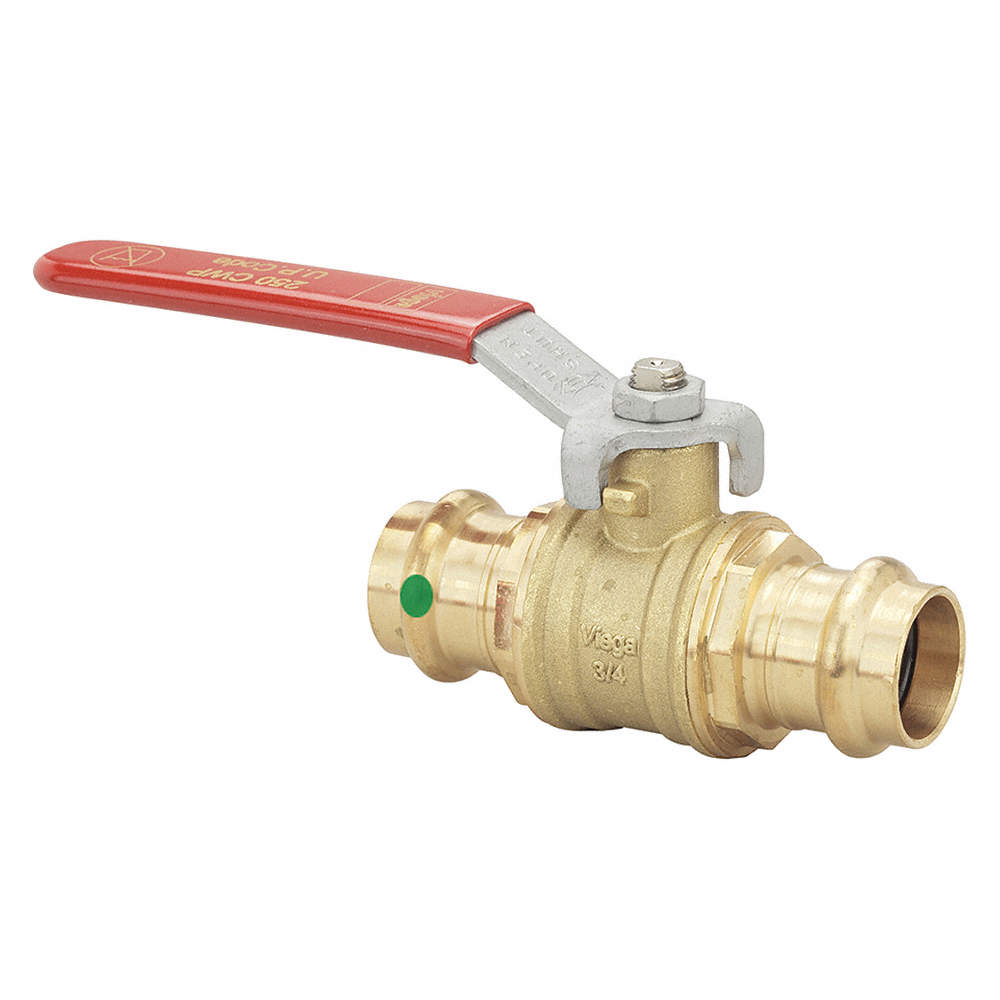

The VIEGA 24005 ProPress ball valve is a 3/4 inch press connection valve. Constructed from bronze and brass, this full port valve is designed for non-potable applications. It features Viega's Smart Connect technology for easy identification of unpressed connections during pressure testing.

• For non potable applications
• Bronze/Brass body
• Press Connection

Product Highlights

The VIEGA ProPress ball valve offers a reliable and efficient solution for various piping systems.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 24005
• Country of Origin: United States

Technical Specifications

• Size: 3/4 in.
• Material: Bronze, Brass
• Port Type: Full Port
• Connection Type: Press x Press
• Connection Method: Press
• End Connection: Press
• End Connection 1: Press
• End Connection 2: Press
• Maximum Temperature: 250 deg F
• Pressure - Maximum: 250 psi
• Specifications - MSS: MSS SP-110
• Specifications - NSF Certified: Yes
• Valve Operator: Lever Handle
• Valve Port Opening: Full Port
• Valve Seat Material: PTFE
• Valve Size: 3/4 in.
• Valve Type: Ball Valve
• Width: 3-18/25 in.
• Product Type: Ball Valves
• Brand: VIEGA
• Handle Material: Zinc Plated Steel with Vinyl Grip
• Handle Type: Lever
• Body Style: Inline
• Compliance: NSF U.P. Code
• Seat Material: PTFE
• Restricted Sale Item Code: A9
• Pipe Size: 3/4"
• Body Seal Material: EPDM
• Seal Material: EPDM
• Features: Smart Connect
• NumberOfItems: 1
• Port: Full
• Temp. Range: 0 Degrees to 250 Degrees F
• Max. Pressure: 200 psi CWP
• Tube Size: 3/4"
• Length: 7.000
• Ball Material: Chrome Plated Brass
• Max. Steam Pressure: 15 psi WSP
• Ball Valve Product Group: Manual
• MPN: 24005
• Country of Origin: United States
• UPC: Does not apply
• Item: Ball Valve
• Body Material: Brass, Bronze
• Standards: 13D and 13R: Fire Sprinkler Applications, CRN: Canadian Registration Number, CSA International: Canadian Standards Association, FM: FM Global, IAPMO: Uniform Plumbing Code, ICC: International Plumbing Code, NFPA 13, NSF/ANSI 372: Drinking Water System Components - Lead Content, NSF/ANSI 61: Drinking Water System Components - Health Effects, PHCC: National Standard Plumbing Code, UL: Underwriters Laboratories
• Stem Type: Blowout Proof
• Stem Material: Brass
• End Style: Press
• Nominal Size: 3/4 in
• Actuator Type: Lever Operated
• Pressure Rating: 200 psi CWP
• Softgoods Material: EPDM
• Temperature Rating: 250 deg F
• Domestic/Import: Import
• Additional Information: Model 2973
• ConnectionType: Press
• Inlet to Outlet Length: 3.72 in
• Manufacturer Product Category: Valves & Accessories
• Media: Water
• Top to Inlet Center: 1.97 in
• Trim Material: Brass/EPDM
• Specifications - ANSI: ANSI 61;ANSI 372
• Specifications - CSA Certified: Yes
• Specifications - IAPMO Listed: Yes
• Specifications - NSF: NSF 61;NSF 372
