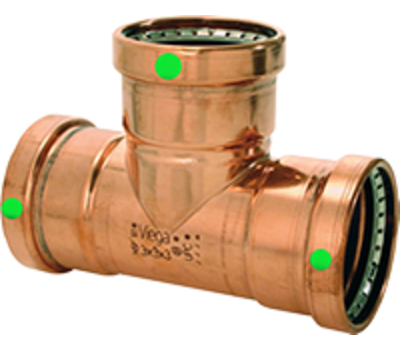

VIEGA 22311 ProPress XL-C 2-1/2 x 2-1/2 x 1/2 in. Copper Reducing Tee

Product Description

The VIEGA 22311 is a ProPress XL-C Copper Reducing Tee designed for efficient copper pipe installation. This fitting works with type K, L, and M copper tubing ranging from one-half to four inches and soft copper up to one and one-quarter inches, all compliant with ASTM B88. The ProPress system utilizes cold press technology for safe and reliable connections.

• Smart connect technology for improved safety.
• Suitable for both above and below ground use.
• Requires Viega ProPress-XL-C rings and V2 actuator for installation.

Product Highlights

This reducing tee is ideal for plumbers and HVAC professionals. Its design allows for ease of installation in various applications while meeting key industry standards.

Product Information

Standard Information

• Brand: VIEGA
• MPN: 22311

Technical Specifications

• Material: Copper
• Connection Type: Pres x Pres x Pres
• Pressure Rating: 200 PSI
• Maximum Temperature Rating: +250 deg F
• Minimum Temperature Rating: 0 deg F
• Specifications Met: ASME B16.51, CRN OA14541.5 A/B/C, CSA MSE 13, FM Class 1920, Florida Building Code, IAPMO Listed
• UPC: 691514223117
• Weight: 1.483 lb
• Selling Size: 2-1/2 x 2-1/2 x 1/2 in
