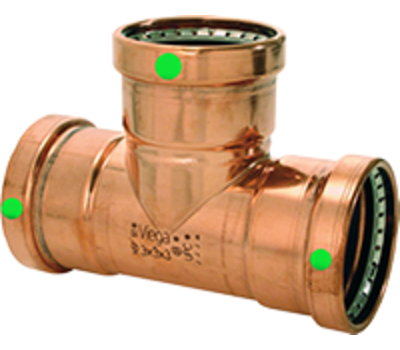

Viega 22310 ProPress XL-C 3 x 3 x 3/4 in. Copper Reducing Tee

Product Description

The Viega 22310 ProPress XL-C 3 x 3 x 3/4 in. Copper Reducing Tee uses modern cold press connection technology for copper pipe installation. This fitting is suitable for ASTM B88 K, L, and M type copper tubing. It can be used in both above-ground and below-ground applications, subject to local inspector approval.

• Smart connect technology
• For use with ASTM B88 tubing
• Press connection

Product Highlights

Includes EPDM sealing element and must be installed with Viega ProPress-XL-C rings and V2 actuator.

Product Information

Standard Information

• Brand: Viega
• Model Number: 22310

Technical Specifications

• UPC: 691514223100
• Series: Propress
• Material: Copper
• Weight: 1.984 lb.
• For Use With: ASTM B88 Tubing
• Selling Size: 3 x 3 x 3/4 in
• Connection Type: Pres x Pres x Pres
• Pressure Rating: 200 PSI
• Specifications Met: ASME B16.51, CRN OA14541.5 A/B/C, CSA MSE 13, FM Class 1920, Florida Building Code, IAPMO Listed
• Maximum Temperature Rating: +250 deg F
• Minimum Temperature Rating: 0 deg F
