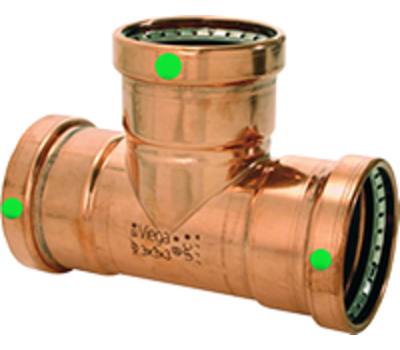

Viega 22309 ProPress XL-C 2-1/2 x 2-1/2 x 3/4 in. Copper Reducing Tee

Product Description

The Viega 22309 is a ProPress XL-C copper reducing tee designed for reliable connections in piping systems. This fitting is compatible with type K, L, and M hard copper tubing from half an inch to four inches and soft copper tubing ranging from half an inch to one and a quarter inches in diameter. Use this fitting in both above-ground and below-ground installations where local inspection approval is secured.

• Smart connect technology for easier installation
• Compatible with ASTM B88 tubing standards
• Constructed from high-quality copper

Product Highlights

Viega ProPress fittings offer a safe, economical option for copper pipe installation with modern cold press connection technology. Ideal for both residential and commercial use.

Product Information

Standard Information

• Brand: Viega
• MPN: 22309

Technical Specifications

• Material: Copper
• Connection Type: Press x Press x Press
• Pressure Rating: 200 PSI
• Maximum Temperature Rating: +250 degrees F
• Minimum Temperature Rating: 0 degrees F
• Specifications Met: ASME B16.51, CRN OA14541.5 A/B/C, CSA MSE 13, FM Class 1920, Florida Building Code, IAPMO Listed
