Viega 22303 2-1/2 x 2-1/2 x 1/2 ProPress XL-C Copper Tee

Product Description

The Viega 22303 is a reducing copper tee fitting designed for connecting various sizes of copper tubing. It features ProPress XL-C connections and a maximum pressure rating of 200 PSI. This fitting is suitable for a range of applications including chilled water and hydronic heating.

• Material: Copper
• Pressure Rating: 200 PSI
• Temperature Rating: 0 to 250 Degrees Fahrenheit

Product Highlights

The Viega Smart Connect feature allows for fast and secure connections with minimal downtime.

Product Information

Standard Information

• Brand: Viega
• MPN: 22303

Technical Specifications

• Type: Reducing

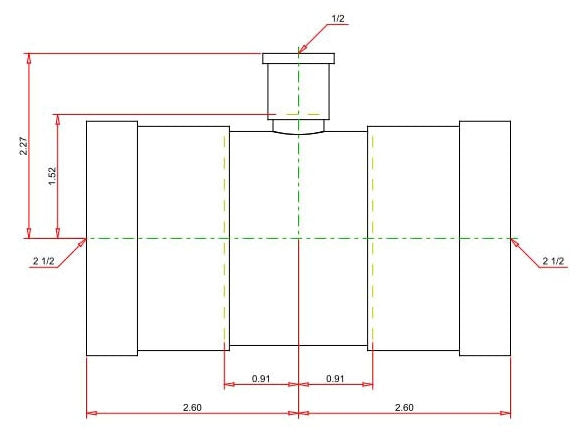

• Nominal Size: 2-1/2 Inch x 2-1/2 Inch x 1/2 Inch
• End Connection: ProPress XL-C x ProPress XL-C x ProPress XL-C
• Pressure Rating: 200 PSI
• Temperature Rating: 0 to 250 Degrees Fahrenheit
• Application: Chilled Water, Compressed Air, Hydronic Heating, Cooling Water, Low Pressure Steam, Fire Sprinkler System, Potable Water
• Applicable Standards: ABS, CSA MSE-13, FM 1920, IAPMO PS117, ICC LC 1002, UL 213, ICC, NFPA 13/13D/13R, PHCC
• Includes: EPDM Sealing Element
