Product Description

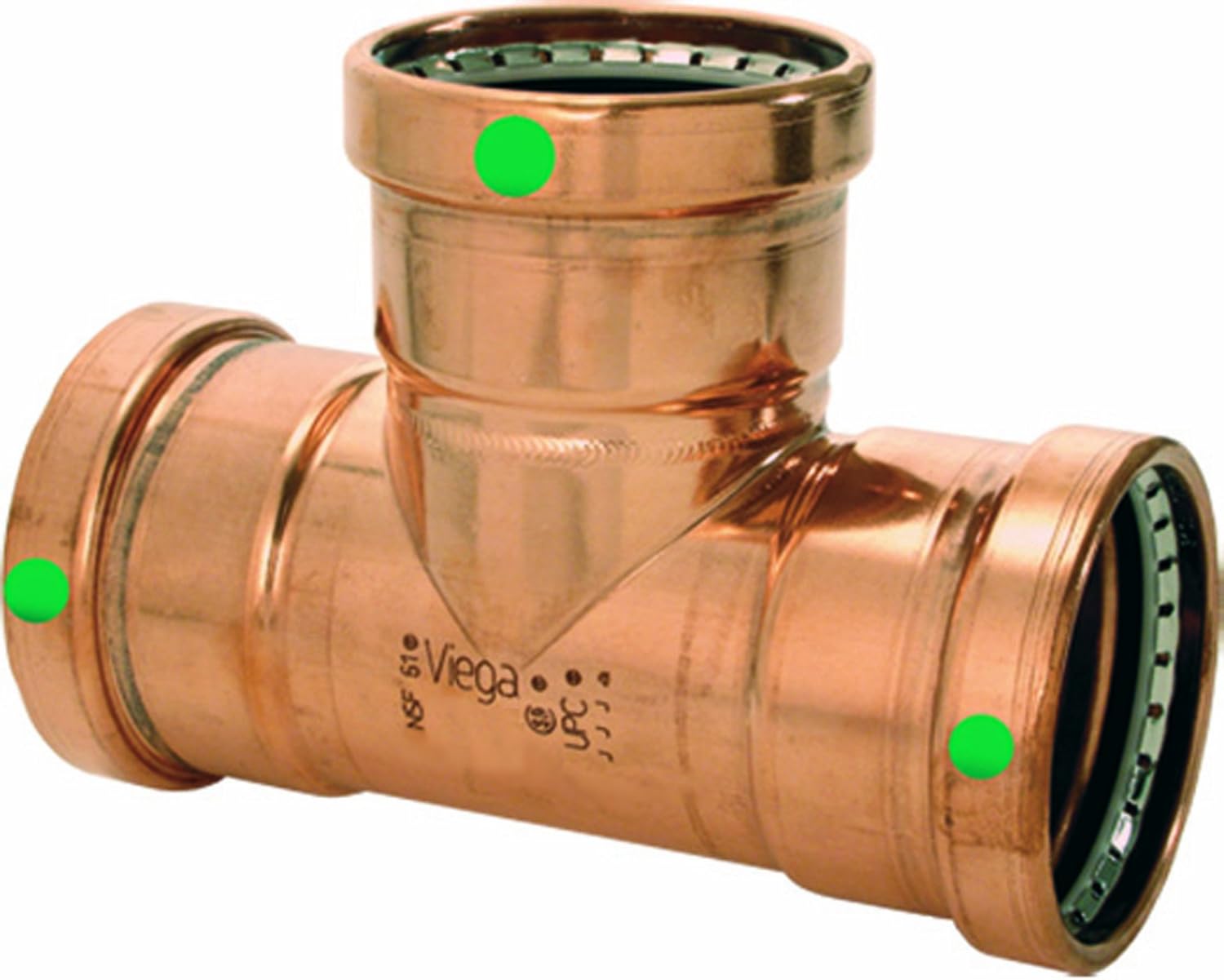

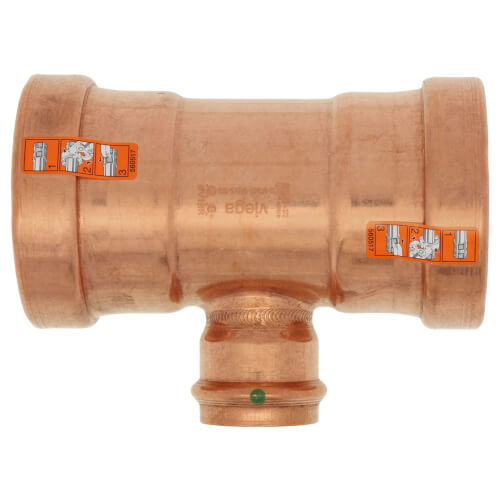

The Viega 22288 ProPress XL-C Copper Tee is designed to connect pipes of size 2-1/2 inches by 2-1/2 inches by 1-1/4 inches in a reliable and efficient manner. Manufactured by Viega, this product uses a press x press x press connection type, ensuring a secure fit without the need for soldering.
- Quick and easy press connections reduce installation time significantly.
- Made from durable copper with an exterior finish for long-lasting use.
- Smart Connect feature alerts users to any unpressed connections during testing.
Product Highlights
This Viega ProPress XL-C tee features EPDM sealing elements which provide excellent resistance against heat and chemicals, making the product suitable for a wide range of applications including potable water systems and air conditioning installations.
Product Information
Standard Information
-
Material: Copper
-
Size: 2-1/2 Inch x 2-1/2 Inch x 1-1/4 Inch
-
Connection Type: Press x Press x Press
Technical Specifications
-
Pressure Rating: 200 PSI
-
Temperature Range: 0 to 250 degrees Fahrenheit
-
Standards Met: ASME B16.51, CSA MSE-13, FM 1920
