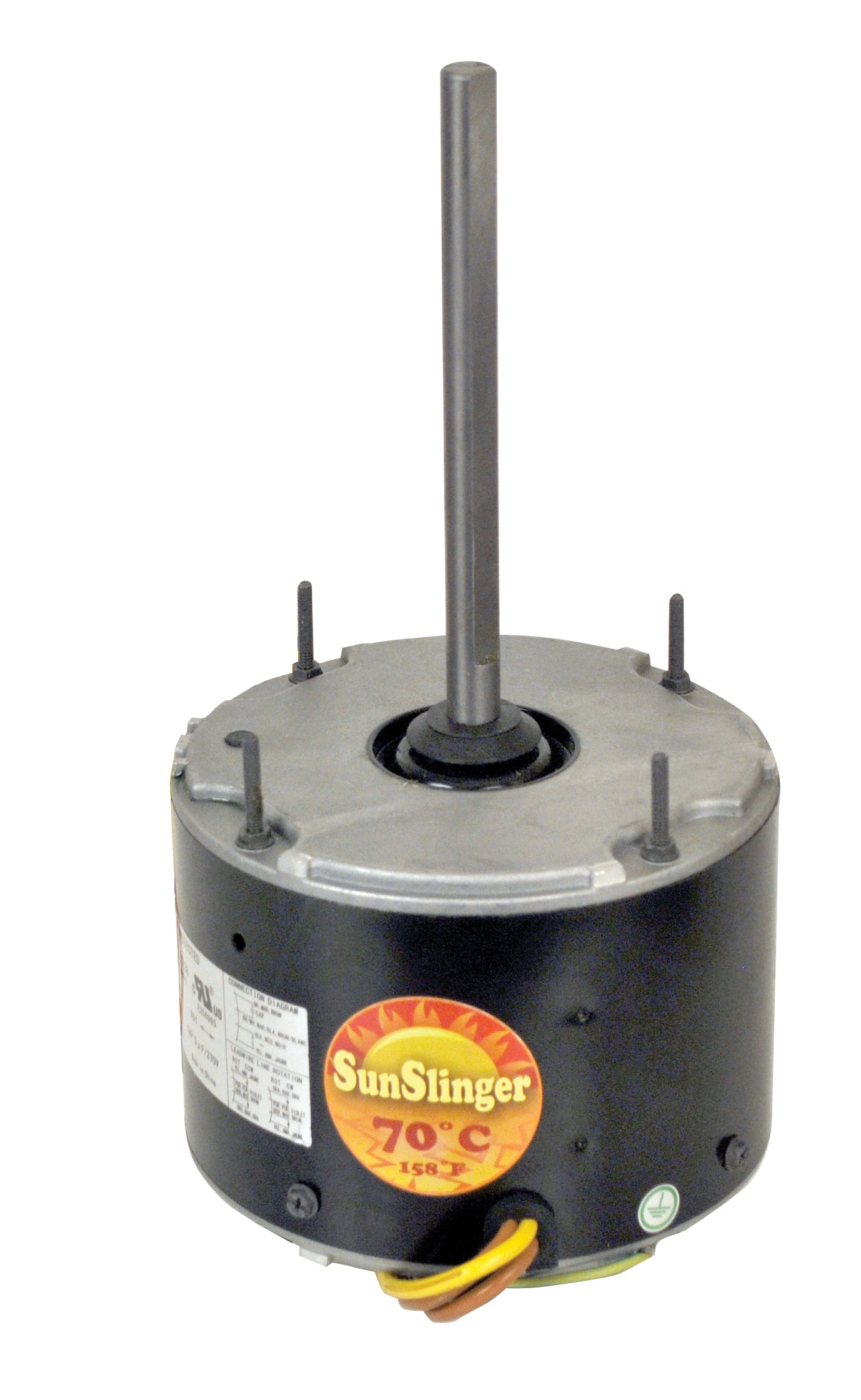

MARS 20848 M M 1/2HP 460V 1075 TE HIGH TEMP BALL BEARING COND MOTOR 10MFD

Product Description

The MARS 20848 is a one-half horsepower condenser motor designed for high-temperature applications. This motor operates at four hundred sixty volts with a speed of one thousand seventy-five RPM. It has a PSC motor type and features a ball bearing design for durability. The capacitor rating is ten microfarads at four hundred forty volts.

• Capable of clockwise and counterclockwise rotation
• Includes a shaft diameter of half an inch
• NEMA frame size of forty-eight

Product Highlights

The MARS 20848 is suitable for various HVAC applications, performing reliably in demanding environments.

Product Information

Standard Information

• Manufacturer: MARS
• UPC: 68574420848

Technical Specifications

• Product ID: 83486
• Motor Type: PSC
• NEMA Frame Size: 48
• Number of Phases: Single
• Shaft Diameter: 1/2 inches
• Speed: 1075 RPM
• Voltage: 460 volts
• Capacitor Rating: 10/440
• FLA: 1.3
• Horsepower: 1/2
• Rotation: CW/CCW
• Item Weight: 19.0500 lbs
• Shaft Length: 6.5 inches
